Description

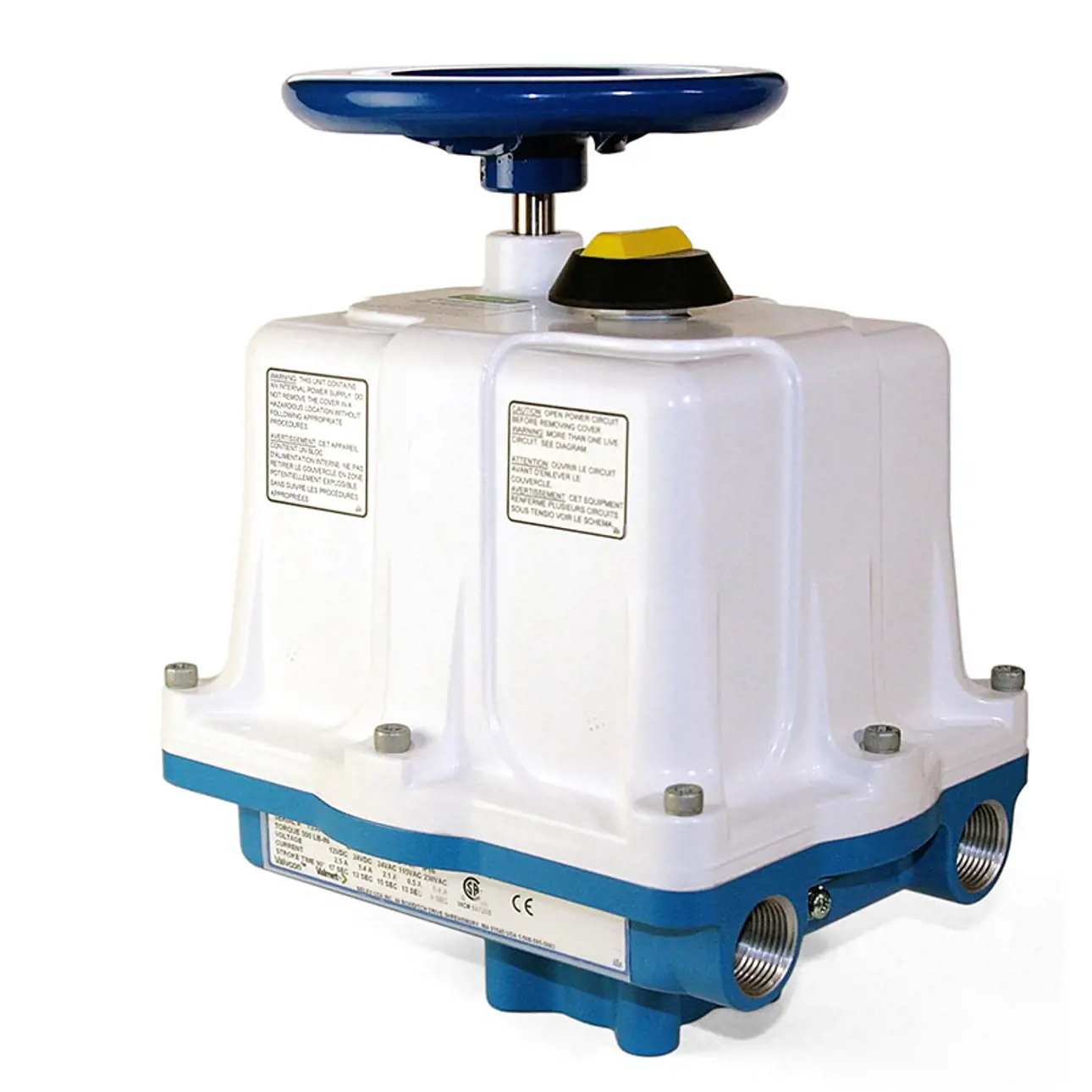

Valvcon™ ADC-Series continuous duty electric actuator Valmet Flow control Valve automation excellence Actuators -Universal, versatile, and dependable continuous duty performance
Key Technical Specifications:
|
SERIES
|
ADC & LADC
|
|
TORQUE OUTPUT
|
17-68 Nm, 150-600 lb-in, 12-50 lb-ft, Series ADC
|
|
113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft, Series LADC
|
|
|
DUTY CYCLE
|
100%, @ +40°C / +104°F
|
|
OPERATION
|
Reversing
|
|
ENCLOSURE*)
|
NEMA 4/4X or NEMA 4/4X/7&9
|
|
TEMPERATURE RANGE
|
-40°C to +66°C / -40°F to +150°F
|
| ATEX Temperature range -20°C to +66°C / -4°F to +150°F | |
|
VOLTAGE
|
24VAC 50/60 Hz (1PH), 115VAC 50/60 Hz (1PH), 230VAC 50/60 Hz (1PH), 12VDC, 24VDC |
|
*) CSA (C US) Certification and CE Compliance standard; NEMA 4/4X/7&9 models are Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III; and also certified to ATEX Directive 2014/34/EU: Ex db IIB T6 Gb, IECEx CSA 14.0057X. Units with sealed lead acid battery are only rated to a maximum of +55°C / +130°F, are not CE compliant, and are not available with ATEX and IECEx certification.
|
Why choose Valvcon™ ADC-Series continuous duty electric actuator?
The Valvcon™ ADC-Series is designed for long-term , continuous-duty operation , providing reliable and precise automation for a wide range of valve types. Built for durability , it combines robust mechanical construction with advanced control electronics to ensure consistent performance in demanding industrial environments.
Typical applications
Process control in oil & gas , chemical , power , and water industries
Valves requiring continuous positioning and modulating control
Remote and hazardous locations where reliability is critical
Additional features
Continuous-duty motor for 100% cycle operation
Digital positioning and feedback for precise control
Manual override for operation during power loss
Compact , corrosion-resistant housing suitable for harsh conditions
Wide torque range and configurable speed settings
