Description

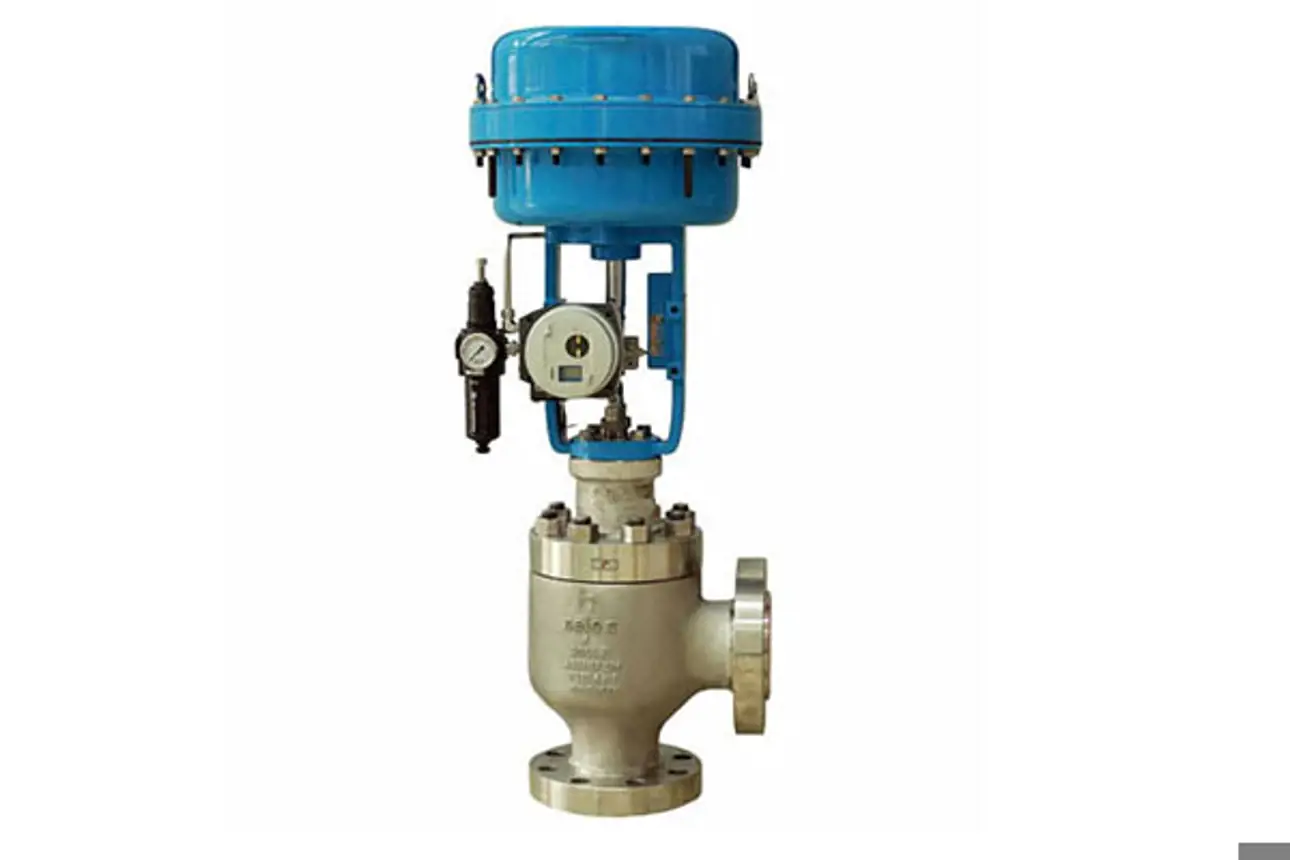

Valmet Flow control Globe valves Neles™ top-guided angle valves, series AU -Superior control performance and high reliability for applications with high pressure drop and high velocities.
Key Technical Specifications:
| Series | AU |
| Design | Unbalanced, top-guided |
| Size range | DN 15 – 150 / 1/2″ – 6″ |
| Pressure classes | ASME 150 – 2500 / PN10 – 320 |
| Temperature range | -200 to +593 °C / -320 to +1053 °F |
| Tightness | ANSI/FCI 70-2 class IV / V (metal seat) and VI (soft seat) |
Why choose Neles™ top-guided angle valves , series AU?
Neles™ top-guided angle valves , series AU , are designed for demanding flow control in applications involving high pressure drops , flashing, or erosive media. The robust top-guided trim ensures excellent stability , vibration resistance , and extended service life , even under severe process conditions.
Typical applications
Pulp and paper industry steam and condensate control
Chemical and petrochemical processing
Power generation systems
Mining and slurry handling
General industrial high-pressure services
Additional features
Heavy-duty construction for high reliability in challenging environments
Top-guided trim for enhanced stability and control accuracy
Wide range of materials and trim options for corrosive or abrasive media
Easy maintenance with modular design
Available with various actuation and positioner options
