Description
Specifications:
| Construction | Flanged or weld end |
| Reduced port trunnion mounted ball valve |
|
| Size range | DN 25 – 400 / 1″ – 16″ |
| Face to face | IEC 534-3 and ANSI/ISA S75.03 |
| Pressure ratings | PN 25 – 100 / ASME 150 – 600 |
| Temperature range | -200 to +600 °C / -320 to +1110 °F |
Features:
- Robust , heavy duty trunnion bearings
- Unique Stemball™ construction , no backlash on stem to ball connection
- Face to face according to IEC 534-3 and ANSI/ISA S75.03
- Top entry design , capable for easy weld end connections
- Application based seat selection options , metal – to – metal and soft seats
- Neles Q-trim™ technology for control applications , anti – cavitation and noise reduction
- Latest Neles Q2-trim™ option available for gas applications
- Low emissions according to ISO 15848
- Fire safe certified according to API 607
- High Cv , including noise attenuations trims , which are designs self – flushing

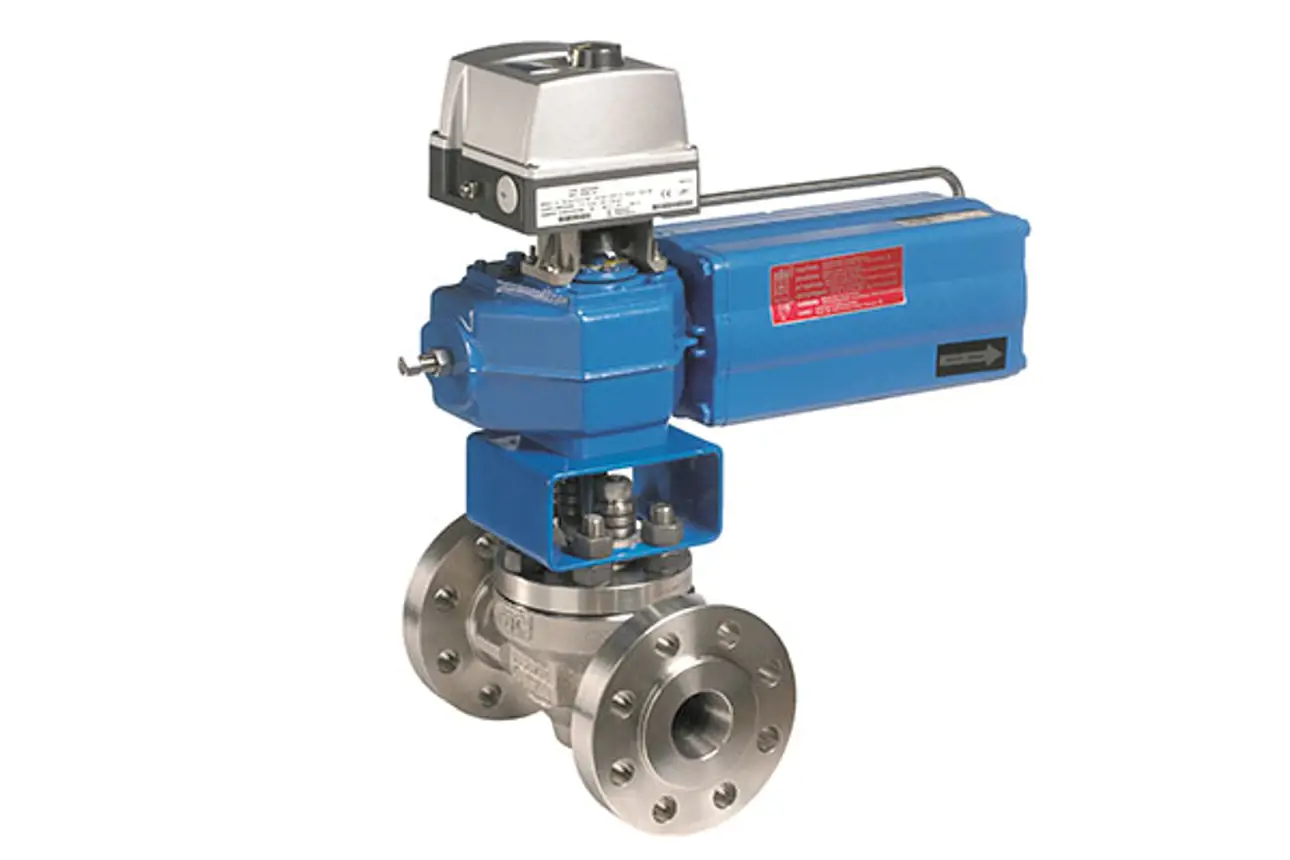

Why Choose Valmet Neles T5 series top entry rotary ball valves?
Easy to maintain: construction due to top entry design , even for weld ends
Increased gas noise attenuation with Neles Q2-trim as option
Future-Proof: Upgradable to sealless magnetic drive (API 685) or cartridge seal (API 682) without piping changes.
Industry-Leading Safety: ATEX certification for hazardous environments.
Applications:
- Crude oil
- Hot residual oil
- LPG , LNG , Natural gas
- Hydrocarbon vapors
- High pressure industrial gases
- Blow down service
- Geothermal water and steam
