Description

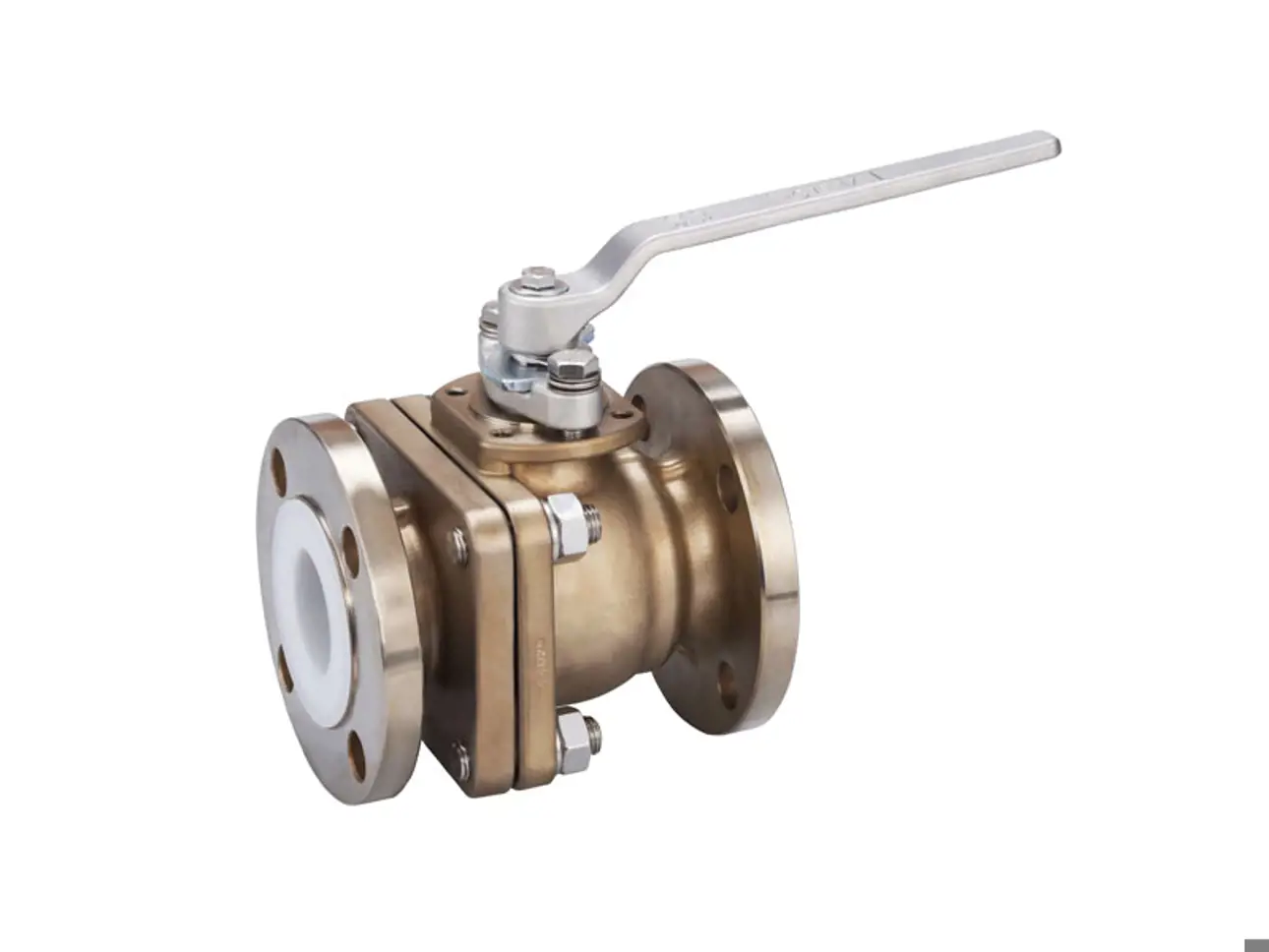

Valmet Flow control Ball valves Neles™ PB series PFA lined ball valve -Improving the customer process reliability, safety and efficiency
Key Technical Specifications:
| Construction | Flanged, seat supported, full bore, PFA lined ball valve |
| Size range | DN 15 – 100 / NPS 1/2” – 6” |
| Face to face | EN 558, ASME B16.10 |
| Design standard | EN 12516, ASME B16.34, ASME B16.42 |
| Pressure ratings | EN PN 16, ASME Class 150 |
| Temperature range | -30 (-10) °C … +160 °C |
Why choose Neles™ PB series PFA lined ball valve?
It offers outstanding corrosion resistance for handling highly aggressive and corrosive media. The PFA lining provides a durable , non-stick surface that minimizes product buildup and extends valve life , even in the most demanding chemical processes.
Typical applications
Chemical and petrochemical processing
Chlor-alkali plants
Acid and caustic handling systems
Pharmaceutical manufacturing
Pulp and paper bleaching processes
Additional features
PFA lining ensures maximum corrosion resistance
Full port design for minimal pressure drop
Fire-safe construction available
Anti-blowout stem design for safety
Compatible with a wide range of actuators
Long service life with minimal maintenance needs
