Description

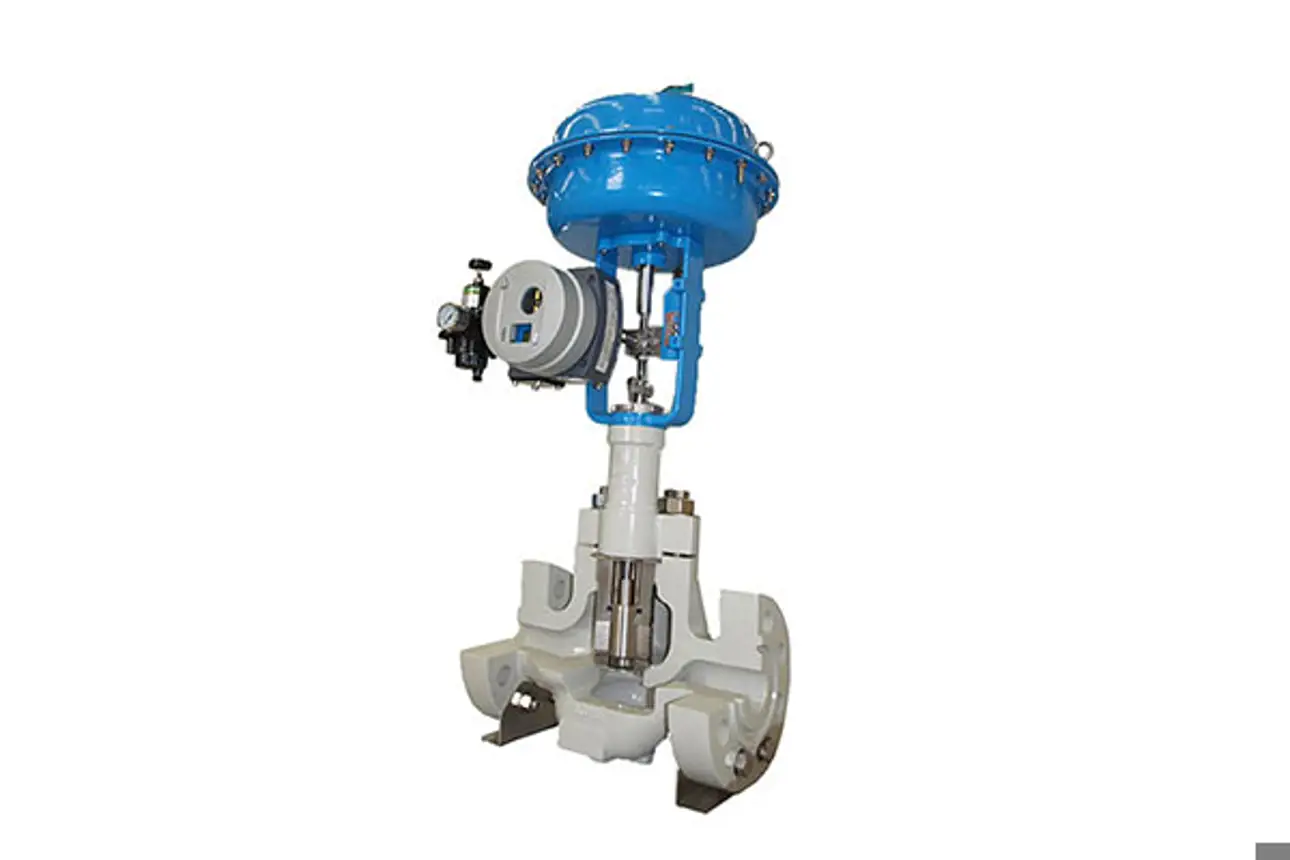

Valmet Flow control Globe valves Neles™ Omega™ globe valve, series GM -Superior control performance and high reliability for severe service applications where noise or cavitation need to be eliminated.
Key Technical Specifications:
| Series | GM |
| Design | Unbalanced, top-guided / balanced, cage-guided |
| Size range | DN 25 – 900 / 1″ – 36″ |
| Pressure classes | ASME 150 – 2500 / PN10 – 320 / JIS 10K – 20K |
| Temperature range | -200 to +593 °C / -320 to +1053 °F |
| Tightness | ANSI/FCI 70-2 class IV / V (metal seat), V (soft seat, balanced), VI (soft seat, unbalanced) |
Why choose Neles™ Omega™ globe valve , series GM?
It delivers precise flow control , high reliability , and excellent adaptability for a wide range of industrial processes. The Omega™ design ensures smooth operation , extended service life , and minimal maintenance requirements.
Typical applications
Pulp and paper process control systems
Oil , gas , and petrochemical operations
Power generation plants
Chemical and refining industries
Mining and minerals processing
Additional features
Robust construction for demanding process conditions
Optimized flow path for reduced pressure loss
Multiple trim options for noise and cavitation control
Wide range of materials and pressure ratings available
Tight shut-off capability for process safety
Easy in-line maintenance and serviceability
