Description

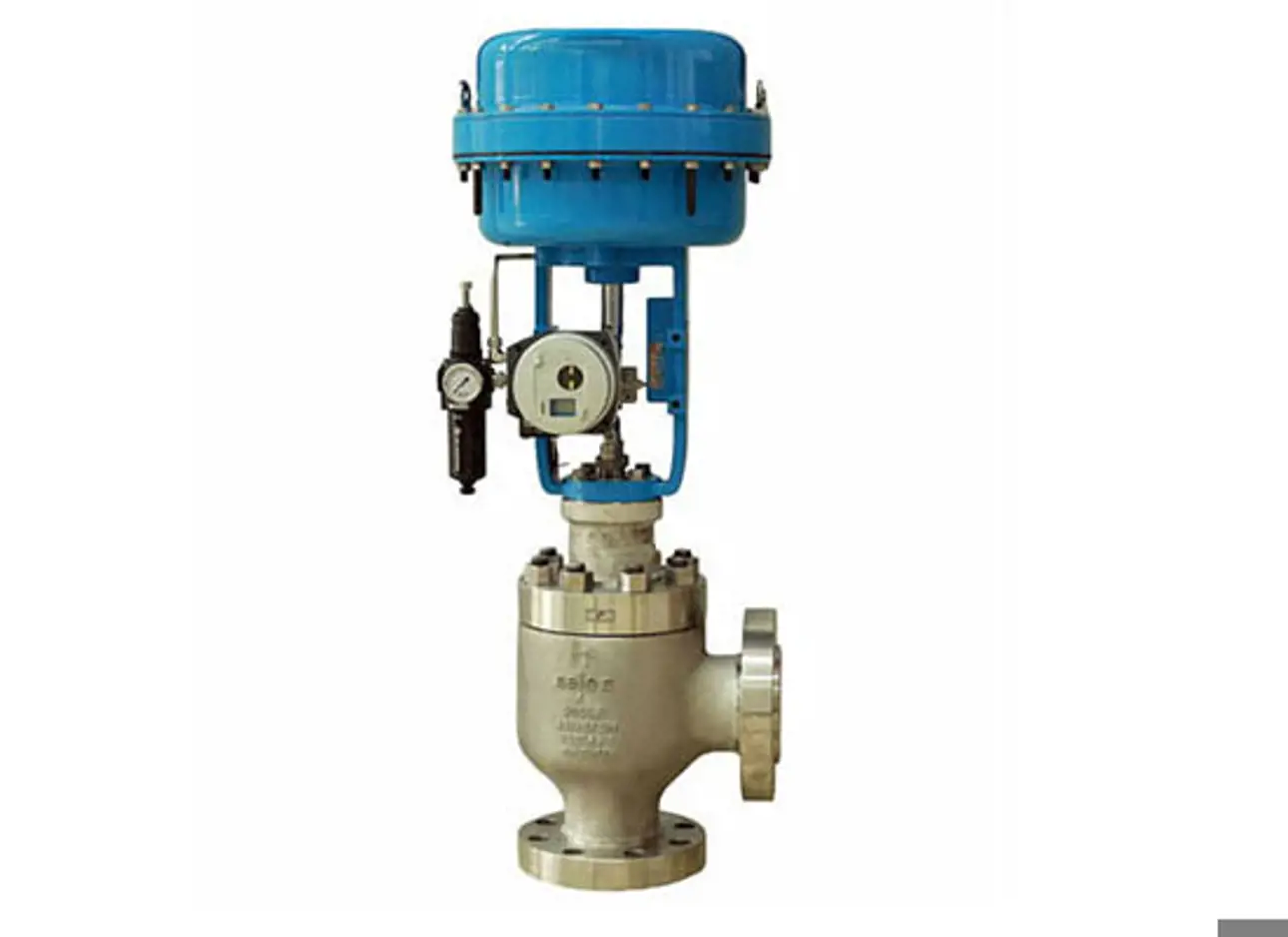

Valmet Flow control Globe valves Neles™ Omega™ angle valve, series AM -Superior control performance and high reliability for severe service applications where noise or cavitation need to be eliminated.
Key Technical Specifications:
| Series | AM |
| Design | Unbalanced, top-guided / balanced, cage-guided |
| Size range | DN 25 – 1200 / 1″ – 48″ |
| Pressure classes | ASME 150 – 2500 / PN10 – 320 |
| Temperature range | -196 °C … +593 °C |
| Tightness | ANSI/FCI 70-2 class IV / V (metal seat), V (soft seat, balanced), VI (soft seat, unbalanced) |
Why choose Neles™ Omega™ angle valve, series AM?
It delivers exceptional control accuracy and durability in demanding process conditions , especially where high pressure drops , flashing , or erosive media are present. The Omega™ angle design optimizes flow handling and minimizes wear , ensuring long service life.
Typical applications
Pulp and paper process lines
Chemical and petrochemical plants
Power generation systems
Mining and slurry handling
Severe service with erosive or corrosive media
Additional features
Omega™ trim technology for high capacity and control precision
Angle body design for effective flow direction change and easier piping layout
Excellent resistance to erosion and cavitation
Available in a wide range of materials and pressure classes
Field-serviceable design for quick maintenance
Multiple trim options for noise and wear reduction
