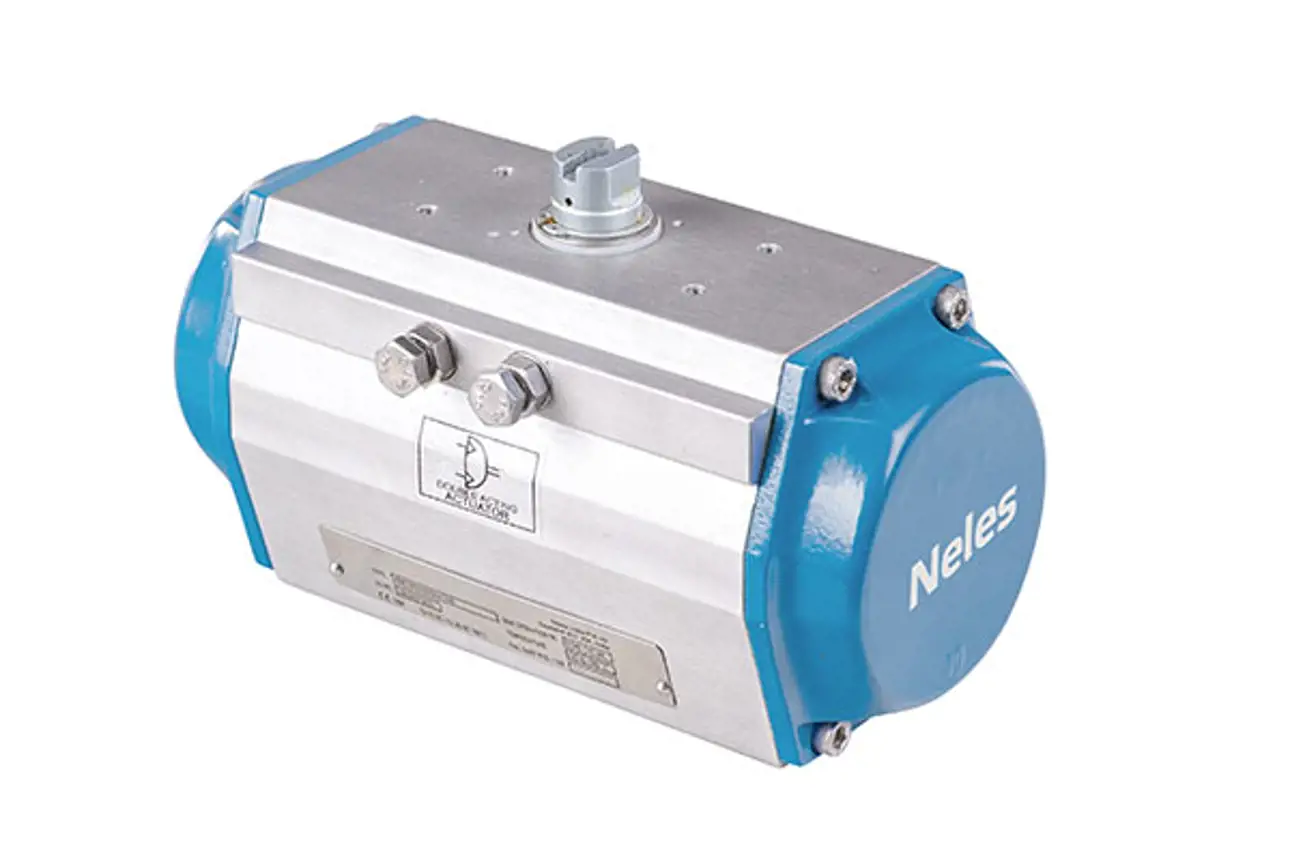

Valmet Flow control Valve automation excellenceActuators Neles Easyflow™ rack and pinion actuator, series RNP -Designed for fast efficient operation of ball, butterfly, and other rotary type valves
Key Technical Specifications:
| Series: | Pneumatic quarter-turn double-opposed piston rack and pinion actuator |
| Version: | Double acting Spring return |
| Body material: | Hard anodized aluminum Carbon steel Stainless steel |
| Max operating pressure: | 8 bar |
| Torque range: | 4 Nm to 5005 Nm |
| Temperature ranges: | General : -20 °C to +80 °C High : -20 °C to +125 °C Arctic : -60 °C to + 80 °C |
| Protection class: | IP67M, IP68M |
| ATEX class: | ATEX 94/9/EC |
| Mounting face: | ISO 5211, VDI/VDE 3845 |
Why choose Neles Easyflow™ rack and pinion actuator , series RNP?
The Neles Easyflow™ RNP series rack and pinion actuator offers a compact , reliable , and cost-effective solution for quarter-turn valve automation. It is engineered for smooth operation , long service life , and easy integration into various process control systems.
Typical applications
General industrial valve automation
Water and wastewater treatment
Oil & gas distribution systems
HVAC and utility services
Chemical and food processing
Additional features
Compact , lightweight design for easy installation
Double-acting and spring-return configurations available
Corrosion-resistant construction for harsh environments
High cycle life with minimal maintenance requirements
Wide torque range to suit different valve sizes
