Description

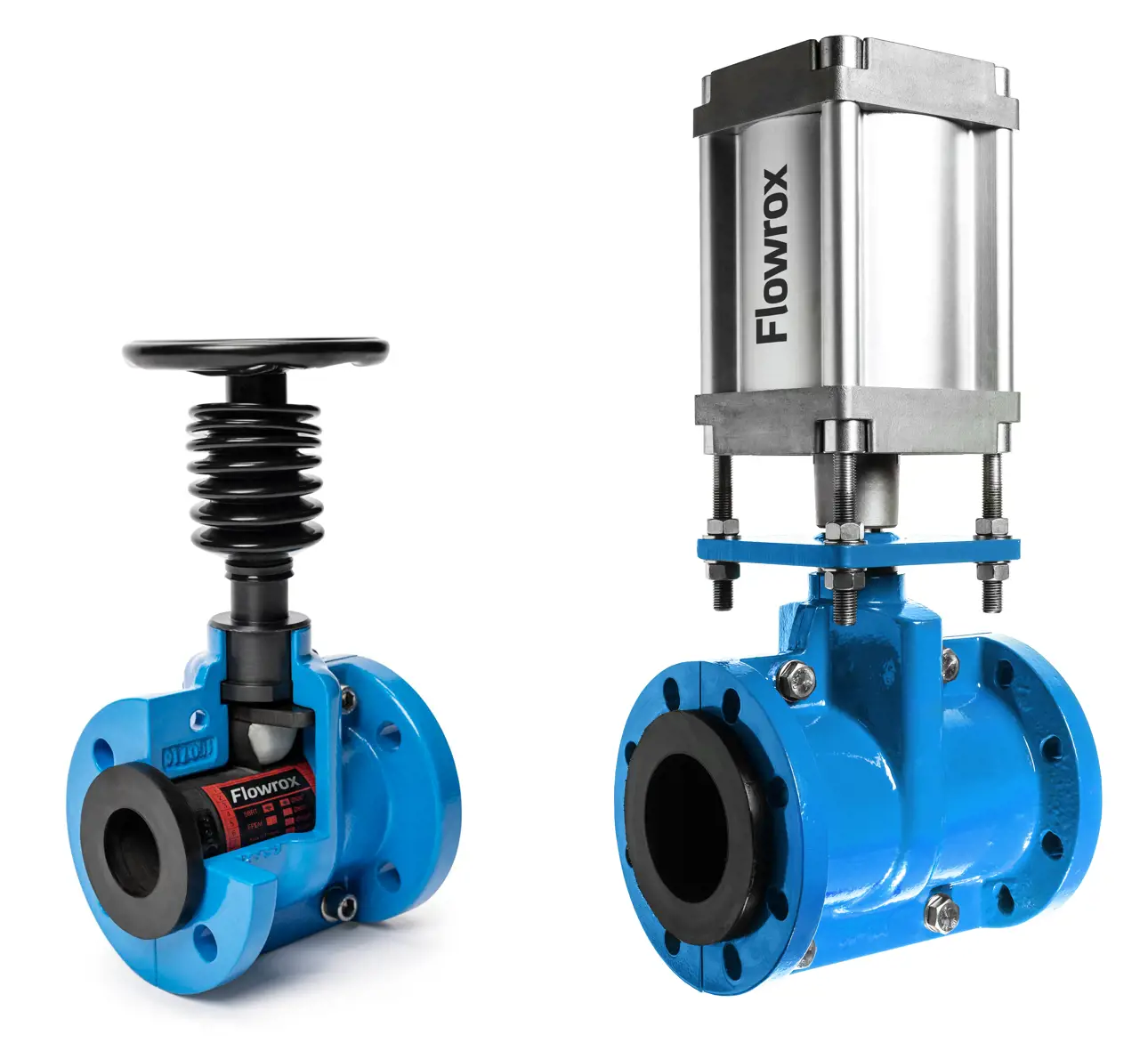

Valmet Flow control Pinch valves Flowrox™ PVG and PVEG pinch valves -Reliable solution to replace diaphragm valves
Key Technical Specifications:
| Series: | PVG | PVEG |
| Size range: | 50 – 250 mm / 2 – 10 in | 50 – 150 mm / 2 – 6 in |
| Pressure range: | 0 – 10 bar / 0 – 145 psi | 0 – 10 bar / 0 – 145 psi |
| Temperature range: | 0 – 110 °C / 32 – 230 °F | 0 – 70 °C / 32 – 158 °F |
Why choose Flowrox™ PVG and PVEG pinch valves?
Flowrox™ PVG and PVEG pinch valves are designed for reliable shut-off and control in abrasive , corrosive , and high solids content slurries. Their elastomer sleeve is the only wetted part , eliminating contact between the media and the mechanical components , which extends service life and reduces maintenance.
Typical applications
Mining and mineral processing
Wastewater treatment
Chemical processing
Pulp and paper industry
Power plant slurry handling
Additional features
Full bore, unobstructed flow path to minimize pressure drop
Excellent wear and corrosion resistance
Easy inline sleeve replacement without removing the valve body
Low operating torque and simple actuation
Available in manual , pneumatic , or electric operation
