Description

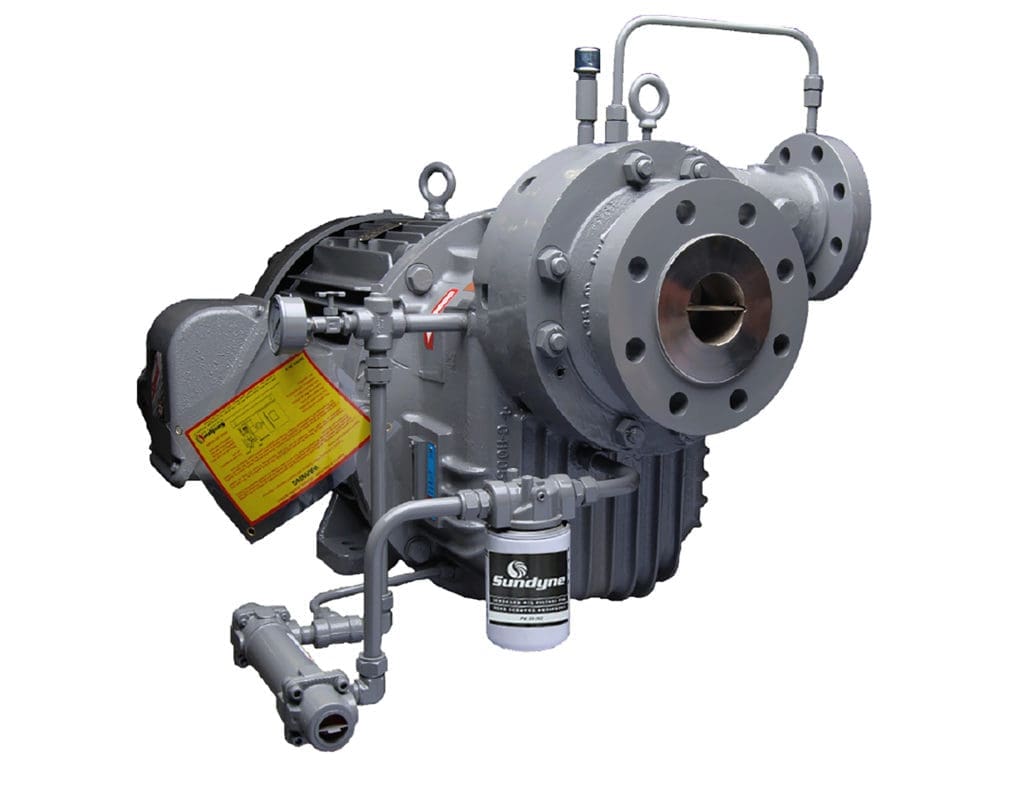

Sundyne Industrial Grade Pumps Sunflo P-3000 Industrial Grade Pump -compact, high-pressure pumping solution
Key Technical Specifications:
- Flows to 500 gpm (91 m³/hr)
- Heads to 4,200 ft (1,280 m)
- Maximum Power 250 HP, 186 kW
- Maximum Suction Pressure 350 psi (25 kg/cm²)
- Minimum NPSH
- Temperature Range -50 to 350°F (-46 to 177°C)
Why Choose Sunflo P‑3000
The P‑3000 delivers on-demand high pressure in a compact, reliable unit. Designed for demanding tasks—like boiler feed, reverse osmosis, washdown, NOₓ suppression, and mineral processing—it uses high-speed operation to minimize motor size and optimize energy use. With a field-serviceable cartridge insert, maintenance is fast and efficient, keeping downtime to a minimum without removing the casing or baseplate.
Main Features
-
Integrally geared single-stage design for compact high-pressure delivery
-
High-speed, energy-efficient operation with lower motor power
-
Shaft-and-impeller cartridge allows rapid in-place servicing
-
Compact footprint—about 25% smaller than equivalent horizontal pumps
-
Supports quick start/stop cycles for intermittent use
-
Close-coupled or frame-mounted configurations for installation flexibility
-
Available with single or double mechanical seals and optional inducer
-
Handles moderate solids (up to 400 µm) and operates under high suction pressure
-
Compatible with standard flange options (600# and 900# RF)
Ideal Applications
Perfect for high-pressure water and fluid tasks, including:
-
Boiler feed and condensate return
-
High-pressure washdown and surface cleaning
-
Reverse-osmosis and seal flush systems
-
NOₓ suppression and environmental injection
-
Mineral processing and abrasive fluid handling
Choose the Sunflo P‑3000 for compact, high-pressure performance with easy maintenance. Its geared design and quick-service cartridge provide rapid response and long uptime in demanding industrial environments.
