Description

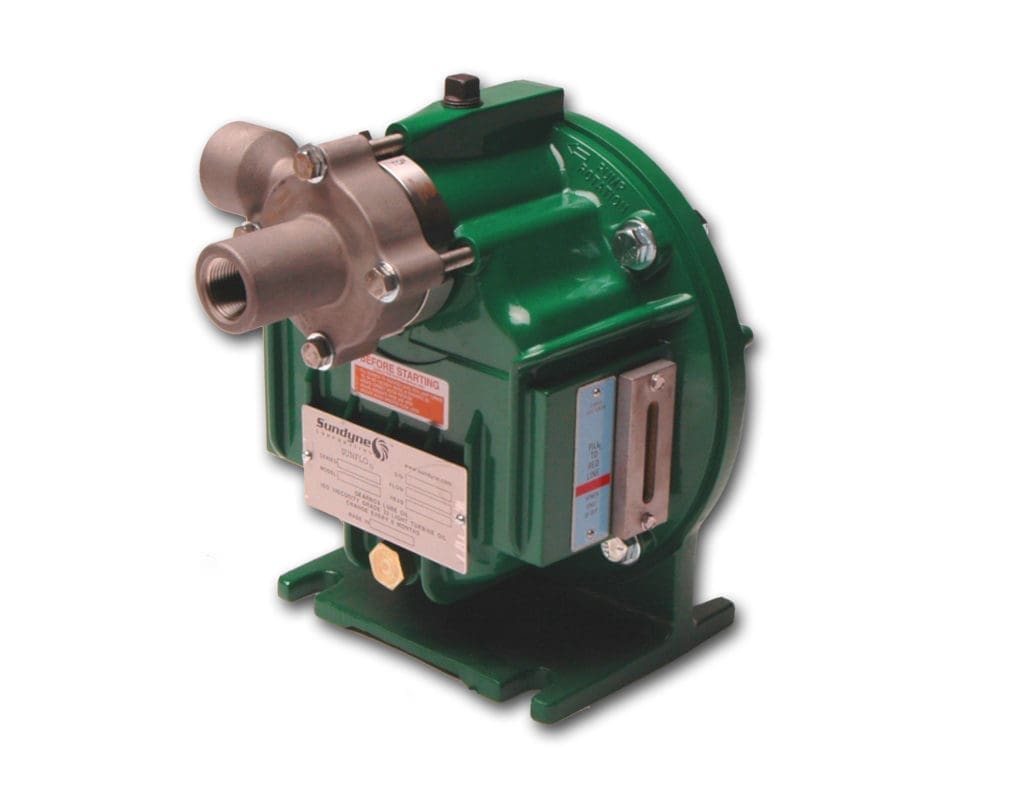

Sundyne Industrial Grade Pumps Sunflo P-1500 Industrial Grade Pump- reliable performance in tough environments.
Key Technical Specifications:
- Flows to 33 gpm (6 m³/hr)
- Heads to 1,300 ft (277 m)
- Maximum Power 10 HP, 7 kW
- Maximum Suction Pressure 200 psi, (14 kg/cm²)
- Minimum NPSH
- Temperature Range -50 to 300°F (-46 to 149°C)
Why Choose Sunflo P‑1500
This pump is engineered for on-demand high-pressure applications , delivering reliable service in boiler feed, reverse‑osmosis , wash‑down, NOx suppression , and mineral‑processing systems. Its integrally geared single‑stage design keeps power requirements low while providing quick responsiveness and consistent performance. Designed for field servicing, it offers simple maintenance and rapid cartridge replacement—without removing the unit from existing piping or baseplate.
Main Features
-
Integrally geared single‑stage design delivers high pressure in a compact footprint
-
High‑speed operation keeps motor size and energy use low
-
Close‑coupled or frame‑mounted configurations adapt to various plant layouts
-
Cartridge shaft/impeller insert enables fast in‑place maintenance
-
Rugged construction supports sealed mechanical options and inducer for low NPSH start
-
Compact and efficient, using about 25% less space than competitive horizontal pumps
Ideal Applications
Perfect for industrial duties like boiler feed, tank truck unloading, plant wash-down, reverse osmosis, seal-flush systems, and general high-pressure water transfer in power, petrochemical, food‑and‑beverage, mining, and wastewater facilities.
