Description

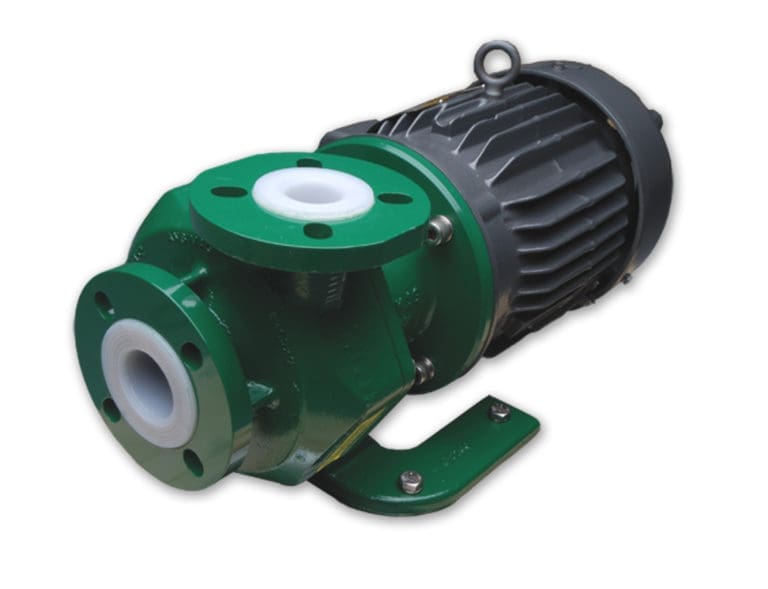

Sundyne Pump ANSIMAG KMLF Low Flow Sealless Magnetic Drive ETFE Lined Pumps- ultra-reliable, leak-free pumping in low-flow, high-precision chemical applications.
Key Technical Specifications
- Flows to 40 gpm (9 m³/hr)
- Heads to 170 ft (52 m)
- Maximum Power 7.5 HP, 5.5 kW
- Temperature Range -20 to 250°F (-29 to 121°C)
Why Choose ANSIMAG KMLF
The ANSIMAG KMLF is purpose-built for low-flow , high-precision applications where leak prevention , corrosion resistance , and system reliability are non-negotiable. Featuring a fully sealless magnetic drive and ETFE-lined wetted components , it offers peace of mind for operators dealing with aggressive or hazardous fluids in sensitive environments. Its compact size and ANSI compatibility make it an ideal fit for dosing skids , pilot plants , and chemical injection systems.
Main Features
ETFE-lined wetted parts provide outstanding protection against corrosive fluids
Magnetic drive technology ensures zero leakage and no seal maintenance
Optimized for low-flow service – ideal for metering and chemical dosing
Kevlar-reinforced casing delivers long-lasting structural integrity
Simple back-pull-out design for fast service without disturbing piping
Compact ANSI/ISO dimensions for easy retrofit into existing systems
Energy-efficient and quiet operation , even in small-scale continuous duty setups
Ideal Applications
Designed for industries where low flow and total fluid containment are critical:
Chemical injection and metering systems
Pharmaceutical process dosing
Water treatment and pH control
Battery and electronics fluid handling
Pilot plants and laboratory-scale systems
Semiconductor and high-purity chemical applications
