Description

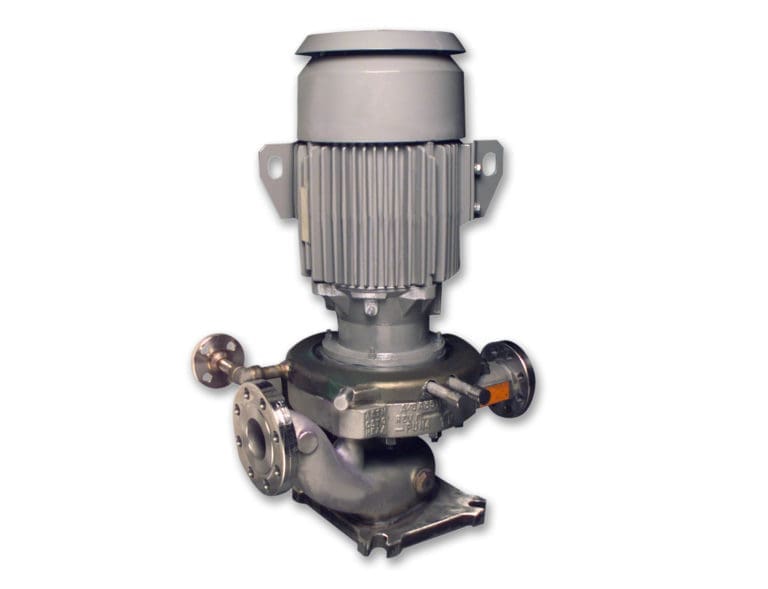

Sundyne Pump Centrifugal LMV 806 Direct Drive Pump-it delivers consistent , leak-free operation in rigorous process environments-saving space , reducing maintenance
Key Technical Specifications:
- Flows to 380 gpm (69 m³/hr)
- Heads to 760 ft (162 m)
- Maximum Power 75 HP, 55 kW
- Maximum Suction Pressure 557 psi (40 kg/cm²g)
- Minimum NPSH
- Temperature Range -40 to 350°F (-40 to 175°C)
Why Choose Sundyne LMV 806?
Choose the LMV 806 when you need a compact, reliable single-stage vertical inline pump built to API 610 standards (OH3/OH5). It extends Sundyne’s direct-drive line to handle higher-pressure, low-flow applications, delivering space-saving installation and robust performance in hydrocarbon, refining, petrochemical, and specialty processing industries
Main Features
Versatile API 610 OH5 configuration, convertible to OH3 with the bearing frame option for flexible driver arrangements
Barske impeller ensures ultra-low NPSH and efficient suction performance
Compact vertical inline design saves up to 25% floor space compared to horizontal pumps
ATEX-certified for safe operation in hazardous environments
Heavy-duty construction ensures years of continuous operation with minimal overhaul
Typical Applications
Designed for demanding tasks such as feed, booster, reflux, wash‑water, bottoms, and condensate pumping in refineries, petrochemical, oil & gas production, offshore, and chemical processing environments
