Description

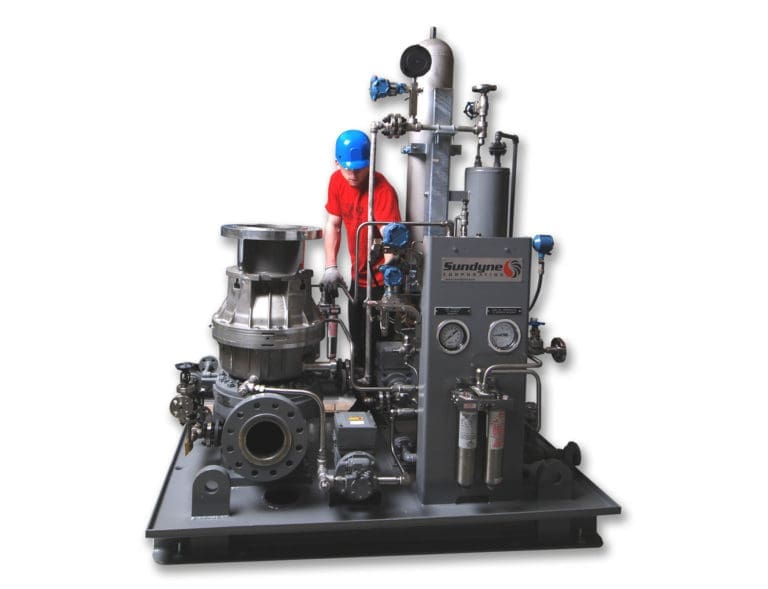

Sundyne Integrally Geared Pumps LMV 333 OH6 Integrally Geared Pump-compact vertical efficiency with multistage pumping power and low-maintenance design.
Key Technical Specifications:
- Flows to 1,000 gpm (227 m³/hr)
- Heads to 4,200 ft (1280 m)
- Maximum Power 250 HP, 186 kW
- Maximum Suction Pressure 500psi (36kg/cm²)
- Minimum NPSH
- Temperature Range -200 to 650°F (-130 to 340°C)
Why Choose LMV 331 OH6
This pump delivers high-head, low-flow performance in a compact vertical design. Its single-stage, integrally-geared configuration replicates multistage capabilities while minimizing footprint. Optimized hydraulic design and an inducer ensure high efficiency and low NPSH operation. Built to API 610 OH6 standards, it reliably handles challenging suction conditions and a wide temperature range.
Main Features
-
Single-stage, integrally-geared construction replicates multistage output in a compact form
-
Vertical close-coupled layout saves space and simplifies installation
-
Computer-optimized hydraulics align peak efficiency with duty-point, reducing power use
-
Inducer-equipped impeller supports effective low-NPSH performance
-
Designed for high suction and wide temperature ranges, including extreme process conditions
-
Built to API 610 OH6 standards for rugged, reliable industrial operation
-
Modular cartridge-style internals allow fast service without piping disassembly
Ideal Applications
Well suited for critical process duties such as acid and olefin feed, sour-water transfer, reflux, condensate boosting, sampling loops, and boiler-feed applications in petrochemical, refining, gas, and power generation environments.
Choose the LMV 331 OH6 for compact vertical efficiency with multistage pumping power and low-maintenance design. It provides reliable, energy-conscious operation in tight spaces, with easy servicing and API-rated performance for demanding industrial applications.
