Description

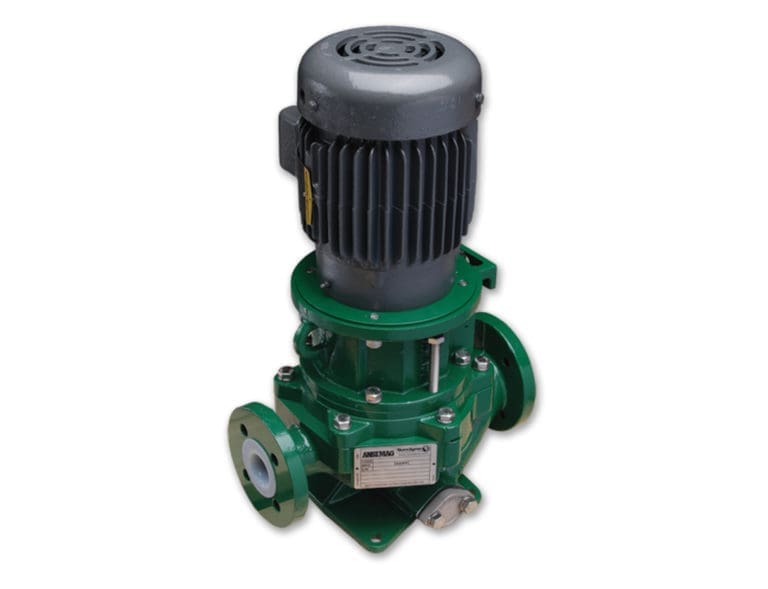

Sundyne Centrifugal Pump ANSIMAG KV Vertical Sealless Magnetic Drive ETFE Lined Pump-compact, vertical pumping power with sealless, leak-free reliability.
Key Technical Specifications:
- Flows to 325 gpm (59 m³/hr)
- Heads to 325 ft (69 m)
- Maximum Power 30 HP, 22 kW
- Temperature Range -20 to 250°F (-30 to 120°C)
Why Choose ANSIMAG KV?
The ANSIMAG KV is a space-saving vertical pump designed for handling aggressive , corrosive , or hazardous liquids with complete safety. Built around magnetic drive technology and featuring a fully ETFE-lined wet end , it provides zero-leakage performance without the complexity of mechanical seals. The vertical configuration makes it ideal for tank-mounted and small-footprint applications where reliability and fluid containment are essential.
Main Features
ETFE-lined components ensure chemical compatibility with a wide range of corrosive fluids
Sealless magnetic drive eliminates mechanical seal failures and fluid leakage
Vertical , close-coupled design saves space and mounts directly to tanks or sumps
Kevlar-reinforced vinyl ester casing provides structural durability in harsh environments
ANSI-compliant dimensions allow simple installation and retrofit
Easy-to-maintain back-pull-out design with minimal wetted components
Quiet and energy-efficient operation for continuous-duty applications
Applications
Ideal for processes where vertical mounting and leak prevention are key:
Chemical feed from tanks and sumps
Scrubber systems and acid circulation
Metal plating and surface treatment
Wastewater neutralization
Semiconductor and electronics chemical handling
Battery and energy storage fluid systems
The ANSIMAG KV installed on tanks or in tight process layouts , it ensures maximum chemical resistance , minimal maintenance , and safe handling of corrosive fluids—backed by Sundyne’s trusted magnetic drive technology.
