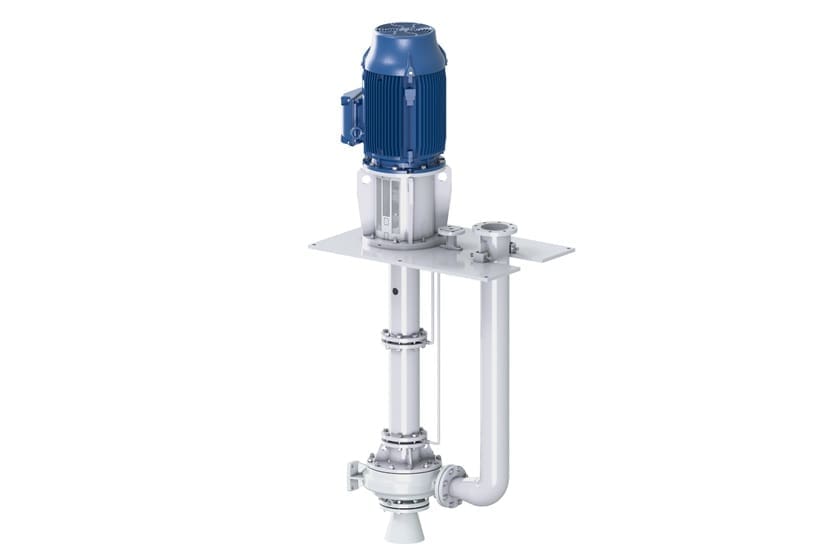

Sulzer VM vertically suspended sump pump

Description

Sulzer Centrifugal Vertically suspended pumps VM vertically suspended sump pump – Vertical sump pump for wide range of liquids

Key Technical Specifications:

Capacities	up to 3’500 m³/h / 15’500 USgpm
Heads	100 m / 330 ft.
Pressures	up to 20 bar / 290 psi
Temperatures	up to 120°C / 250°F
Length	up to 6 m / 20 ft
	Longer shaft, higher capacities and heads available available upon request.

Why Choose Sulzer VM Vertically Suspended Sump Pumps?
The Sulzer VM is a high-performance vertically suspended sump pump designed to handle corrosive and abrasive fluids in industrial sumps. Its rigid shaft construction and column-mounted design allow for extended service life and reliable operation under harsh process conditions. Built to support continuous-duty cycles , it offers dependable performance with minimal maintenance.

Key Technical Specifications
Pump Type: Vertically suspended sump pump
Design: Single or multistage with rigid column and line-shaft bearings
Mounting: Vertical with baseplate or cover-mounted configurations
Column Length: Up to 6 m or more
Materials: Available in stainless steel , duplex , and high-alloy materials

Design & Functionality

Sturdy line shaft with sleeve bearings for long sump depths

Enclosed or semi-open impellers tailored for fluid characteristics

Axial thrust absorbed by heavy-duty bearings above baseplate

Shaft sealing with mechanical seal or packing

Flexible drive options for varied process needs

Typical Applications

Deep sumps in chemical or petrochemical plants

Power plant condensate pits and utility sumps

Wastewater collection wells and effluent pits

Steel , mining , or fertilizer industries with aggressive fluid profiles

Sea water and brine transfer in desalination plants

Additional Features

Modular design for easy transport and assembly

Wide range of materials for corrosive or erosive service

Flexible suction and discharge configurations

Optional external flushing and cooling arrangements

Designed for high reliability in unattended installations

The Sulzer VM is engineered for rugged vertical sump applications where reliability and durability are paramount. With robust shaft support , customizable depth , and proven hydraulic performance , the VM pump stands out as a powerful solution for challenging fluid handling in industrial environments.
