Description

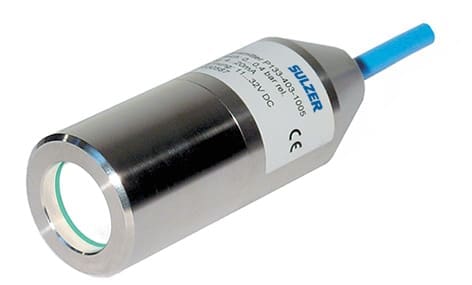

Sulzer Control and Monitoring equipment Measuring devices Submersible pressure sensor type ABS MD 127 -Submersible and highly accurate
Key Technical Specifications:
| Cable | PE, shielded |
| Housing | Stainless steel 1.4404 |
| Sensor | Ceramic AL203 ,gold coated |
| Output signal | 4 – 20 mA, 2-wire, fixed to the sensors measuring range |
| Accuracy | ≤ ±0.2 % FS @ 25 °C |
| Response time | 200 ms |
| Supply voltage | 9…30 V DC |
| Ambient temperature | -25…80 °C |
| Temperature coeff. | ≤ ± 0.02 % FS/K (Zero) |
| Long term stability | ≤ ± 0.2 % FS p.a. |
| Protection | P 68 |
| Weight of sensor | approx. 0.5 kg |
| Weight of cable | 0.5 kg / 10 m |
| Electrical connection shielded | PE cable with pressure compensation capillary and filter |
| Measuring Range | Max. Overpressure | Cable Length |
| 0 – 1.0 mH2O | 4 bar | 10 m |
| 0 – 2.0 mH2O | 6 bar | 10 m |
| 0 – 2.0 mH2O | 6 bar | 25 m |
| 0 – 4.0 mH2O | 6 bar | 10 m |
| 0 – 4.0 mH2O | 6 bar | 25 m |
| 0 – 10 mH2O | 10 bar | 15 m |
| 0 – 10 mH2O | 10 bar | 25 m |
| 0 – 20 mH2O | 10 bar | 25m |
| 0 – 40 mH2O | 25 bar | 45 m |
Why choose Sulzer Submersible pressure sensor type ABS MD 127?
It offers precise , continuous pressure and level measurement in submerged applications , ensuring accurate monitoring and control in water , wastewater, and industrial environments. Engineered for demanding conditions , it delivers long-lasting performance with minimal maintenance.
Typical applications
Wastewater pumping stations and treatment plants
Stormwater retention and flood control systems
Level monitoring in tanks , reservoirs , and sumps
Industrial process water and effluent systems
Additional features
Fully submersible construction for direct immersion
High measurement accuracy and stability over time
Corrosion-resistant housing for harsh liquid environments
Compatible with fresh water , wastewater , and industrial fluids
Easy integration with Sulzer and third-party control systems
Long service life with low maintenance requirements
