Description

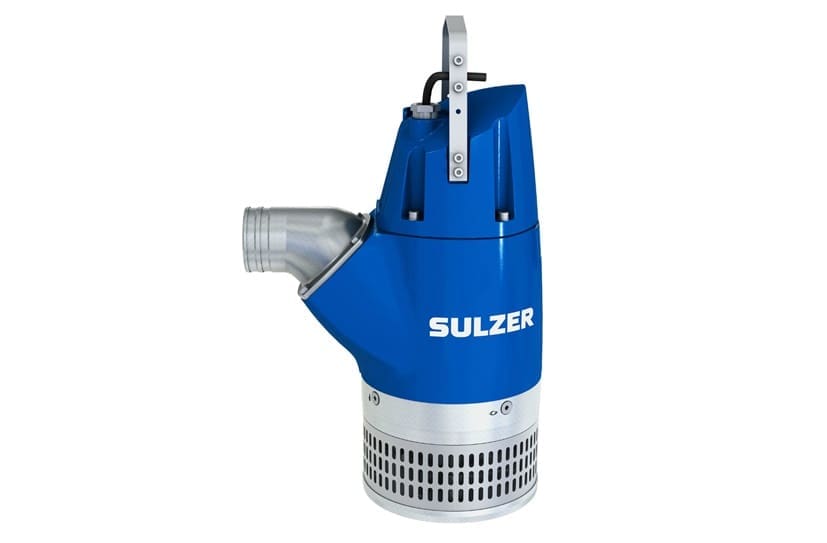

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage pump XJ 50 – Drainage solutions reduce water-related downtime
Key Technical Specifications:
50HZ
| Electric submersible pump | XJ 50 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1.100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 7.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 5.6 kW |
| Speed | 2,930 rpm |
| Power cable | 20 m type H07RN8-F |
60HZ
| Electric submersible pump | XJ 50 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 7.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 6.7 kW |
| Speed | 3,520 rpm |
| Power cable | 20 m type H07RN8-F |
Why Choose the Sulzer XJ 50 Submersible Pump
The XJ 50 is built for rugged dewatering tasks in construction , mining , tunneling , and stormwater applications:
Designed for pumping water and dirty water with light abrasives in environments where durability is essential.
AquaTronic control (optional or built‑in) ensures optimal impeller rotation regardless of phase connection and provides built‑in protection against overload , phase loss , motor overheating , and dry‑run. It also enables anti‑clog backspin and automatic restart.
Plug‑and‑pump setup allows installation without external control panels; diagnostics available directly from the pump without disassembly.
Modular design promotes easy serviceability—external inspection ports , wear-ring adjustment , and USB interface for condition monitoring.
Technical Specifications
Motor power: 5.6 kW at 50 Hz; 6.7 kW (~9 hp) at 60 Hz
Max flow / head: • ~35 L/s and ~45 m at 50 Hz
• ~36 L/s and ~49 m (~161 ft) at 60 Hz
Weight: ~59 kg (130 lb)
Protection: IP 68; maximum submergence ~20 m (~65 ft)
Operating medium: density ≤ 1100 kg/m³ ; pH between 5 and 8
Solids / strainer size: 7.5 × 22 mm (5/16″ × 7/8″)
Start cycles: up to 30 per hour
Features & Options
AquaTronic (AT) versions integrate electronics for phase correction , automatic start/stop , thermal and overload safety , anti‑clog operation , and status logs.
Level‑sensor combinations (AquaPlug) enable automatic stop/start by water level with status indicators and diagnostic alerts.
Accessory options: various discharge couplings (3″, 4″, 6″ BSP/NPT/Storz), flotation rings , zinc anode belts for corrosion protection.
Wear-resistant materials: white cast‑iron impeller and wear ring , nitrile rubber coating , dual mechanical seals in an oil bath.
The Sulzer XJ 50 is a high-capacity , robust , and intelligent dewatering pump suitable for demanding site conditions. It delivers significantly higher flow and head than the XJ 40 while maintaining rugged construction , modular design , and advanced electronic protection. Ideal for automated , continuous , or intermittent operations in confined or abrasive environments.
