Description

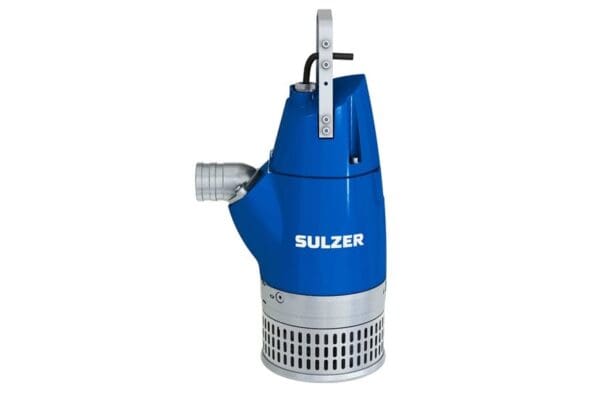

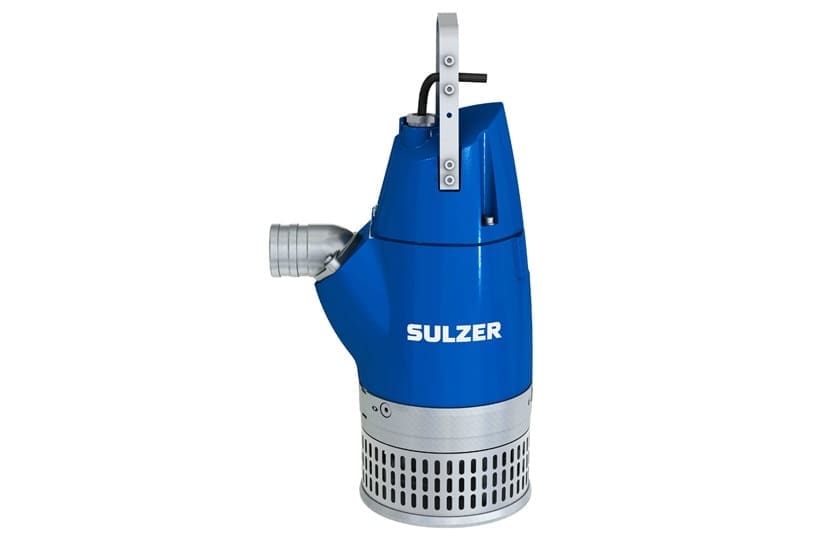

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage pump XJ 25 -Save energy and the environment
Key Technical Specifications:
50HZ
| Electric submersible pump | XJ 25 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 7.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 2.5 kW |
| Speed | 2,920 rpm |
| Power cable | 20 m type H07RN8-F |
60HZ
| Electric submersible pump | XJ 25 |
| Maximum submergence | 65 ft |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 104ºF |
| Max. media density | 0.0397 lb/inch3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 5/16” x 7/8” |
| Max number of starts | 30/hour |
| Motor rating P2 | 4 Hp |
| Speed | 3,500 rpm |
| Power cable | 65 ft type AWG |
Why Choose the Sulzer XJ 25 Submersible Pump?
The XJ 25 is a compact yet powerful dewatering pump designed for tough conditions in construction , mining , and tunneling. Its lightweight build , energy efficiency , and intelligent motor control make it the ideal solution for continuous and demanding operations.
Key Technical Specs
Power Rating: 2.5 kW
Max Flow: Up to 30 l/s
Max Head: Up to 28 m
Solids Handling: Up to 7 mm
Weight: ~30 kg
Voltage: 400V / 3 phase
What Makes It Stand Out
AquaTronic unit ensures optimal performance and protects against dry running
Plug-and-play design with easy setup and minimal maintenance
High chrome impeller for extended wear life
Slim profile fits tight sump areas
Energy-efficient motor cuts operational costs
Typical Applications
Construction dewatering
Tunnel drainage
Mining sumps
Stormwater pits
Temporary or permanent drainage installations
Extra Features
Built-in start/stop function with level control (optional)
Thermal protection and phase guard
Corrosion-resistant materials
Easy service access with minimal tools
Multiple discharge options
The Sulzer XJ 25 is your smart , efficient drainage solution. Lightweight , rugged , and packed with protection features—this pump keeps your site dry and your operations moving.
