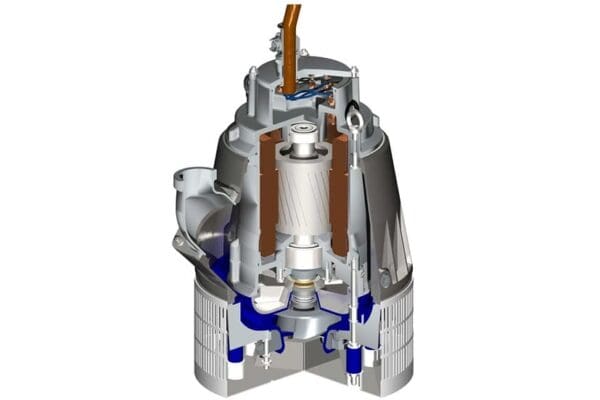

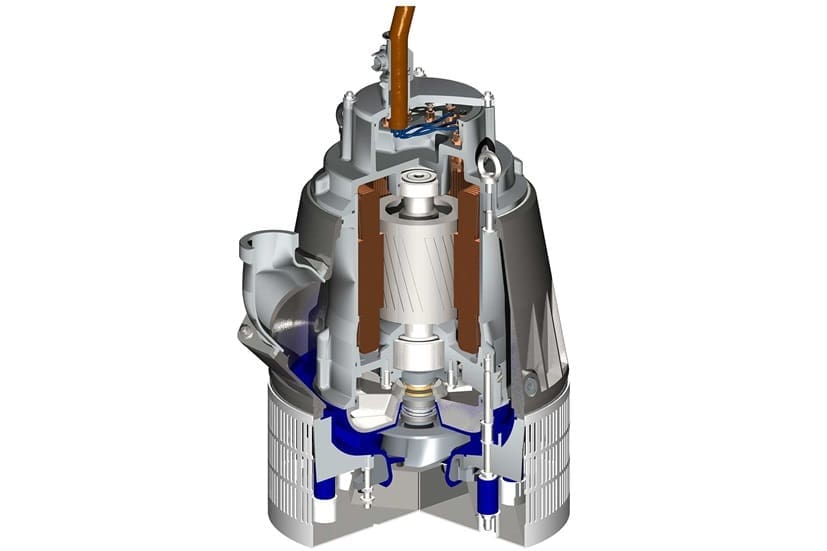

Sulzer Submersible drainage pump J MEX (MSHA) – Available in the USA only Full range

Home/Shop/Pumps/Centrifugal Pumps/Sulzer Submersible drainage pump J MEX (MSHA) – Available in the USA only Full range

Sulzer Submersible drainage pump J MEX (MSHA) – Available in the USA only Full range

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage pump J MEX (MSHA) – Available in the USA only Full range

The J MEX is purpose-built for the U.S. mining industry , delivering reliable dewatering under the most demanding underground conditions.

It’s MSHA-certified and designed for safe , continuous operation in hazardous environments.

Quick-access serviceability

Request This Product

Fill your information and we will reach you out!

Description

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage pump J MEX (MSHA) – Available in the USA only Full range -Full range MSHA approved dewatering pumps


Key Technical Specifications:

Capacities up to 1’500 USgpm
Heads up to 340 ft.
Temperatures up to 104ºF
Motor power up to 59.8 HP

Why Choose the Sulzer J MEX MSHA-Certified Submersible Pump?
The J MEX is purpose-built for the U.S. mining industry , delivering reliable dewatering under the most demanding underground conditions. It’s MSHA-certified and designed for safe , continuous operation in hazardous environments.

Key Technical Specs – Full Range

Power Range: 2.2 to 55 kW

Max Flow: Up to 240 l/s

Max Head: Up to 100 m

Solids Handling: Up to 7 mm

Voltage: 460V / 3 phase

Certification: MSHA-approved for use in mines

What Makes It Stand Out

MSHA compliance ensures legal and safe use in U.S. mining operations

Heavy-duty design built for continuous , high-abrasion performance

Double mechanical seals for superior leakage protection

Thermal and moisture sensors for added motor protection

Flexible discharge sizes for varied installation needs

Typical Applications

Underground mines (coal , metal , and mineral)

Mining shafts and tunnels

Slurry drainage in explosion-prone areas

Harsh construction and industrial settings

Extra Features

Explosion-safe cable entry

Motor protection with built-in sensors

Rugged impeller design handles gritty, dirty water

Corrosion-resistant construction

Quick-access serviceability


Sulzer J MEX (MSHA) – Certified tough. Engineered for safe , unstoppable performance in hazardous U.S. mining zones. When the pressure’s high and the work is critical , this pump delivers.
