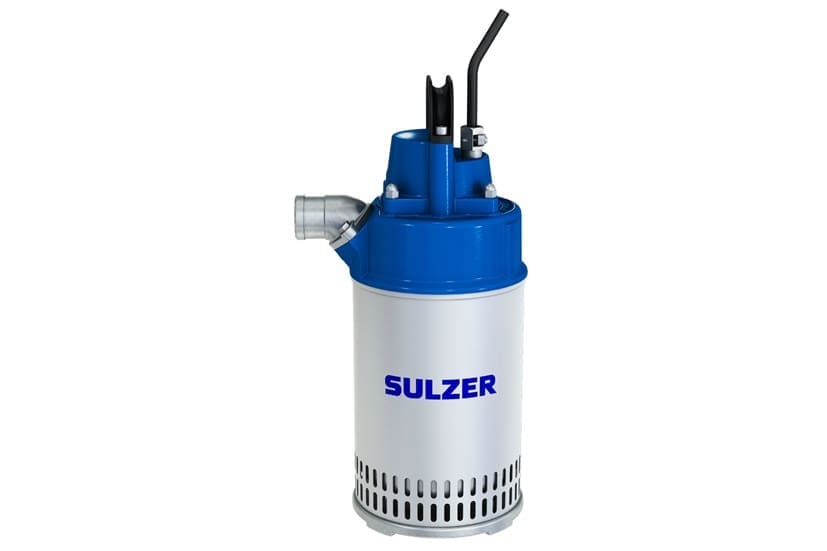

Sulzer Submersible drainage pump J 15

Description

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage pump J 15 – Easy-to-handle, ready-to-use

Key Technical Specifications:

50hz

Electric submersible pump	J 15
Maximum submergence	20 m
Protection class	IP 68
Max. temperature of pumped medium at max. power input and continuous duty	40ºC
Max. media density	1,100 kg/m³
pH of the pumped medium	5-8
Strainer hole	6.5 x 22 mm
Max number of starts	30/hour
Motor rating P₂	1.4 kW
Speed	2,720 rpm (1~), 2,800 rpm (3~)
Power cable	20 m type H07RN8-F

60hz:

Electric submersible pump	J 15
Maximum submergence	20 m
Protection class	IP 68
Max. temperature of pumped medium at max. power input and continuous duty	40ºC
Max. media density	1,100 kg/m³
pH of the pumped medium	5-8
Strainer hole	6.5 x 22 mm
Max number of starts	30/hour
Motor rating P₂	1.5 kW (1~), 1.7 kW (3~)
Speed	3,420 rpm (1~), 3,320 rpm (3~)
Power cable	20 m type H07RN8-F

Why Choose the Sulzer J 15 Submersible Drainage Pump?
The J 15 is a compact , tough submersible pump built to handle demanding dewatering tasks in construction , tunneling , and emergency applications. It’s made for dirty water with fine solids—efficient , dependable , and easy to use in the harshest environments.

Key Technical Specs

Power Rating: 2.2 kW

Max Flow Rate: Up to 13 l/s

Max Head: Approx. 23–25 m

Solids Handling: Up to 7 mm

Weight: ~26 kg

Discharge Connection: 2″ hose/BSP/NPT

What Makes It Stand Out

Strong performance in compact form

Corrosion-resistant and wear-resistant materials

Thermally protected motor prevents overheating

Double mechanical seals for longer life

Fast setup, easy maintenance

Typical Applications

Construction dewatering

Mining and tunnel drainage

Emergency flood management

Utility pits , shafts , and basements

Extra Features

Dry-run protection with air valve

Continuous-duty operation

Optional float switch available

Ergonomic carry handle for mobility
