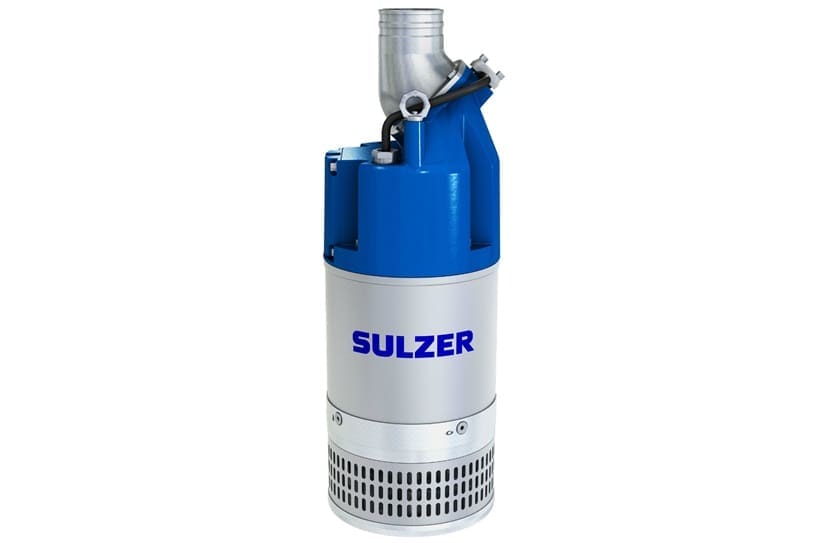

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage center-line pump XJC 80 -Slim design for efficient pumping
Key Technical Specifications:
50HZ
| Electric submersible pump | XJC 80 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 7.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 8.3 kW |
| Speed | 2,920 rpm |
| Power cable | 20 m type H07RN8-F |
60HZ
| Electric submersible pump | XJC 80 |
| Maximum submergence | 20 m |
| Protection class | IP 68 |
| Max. temperature of pumped medium at max. power input and continuous duty | 40ºC |
| Max. media density | 1,100 kg/m3 |
| pH of the pumped medium | 5-8 |
| Strainer hole | 7.5 x 22 mm |
| Max number of starts | 30/hour |
| Motor rating P2 | 9.8 kW |
| Speed | 3,520 rpm |
| Power cable | 20 m type H07RN8-F |
Why Choose the Sulzer XJC 80 Submersible Pump?
Slim center‑line design makes it ideal for installations with limited space, such as trenches or confined sumps
Suitable for pumping water and lightly abrasive dirty water reliably, even under low‑water conditions or occasional dry runs
AquaTronic option available: ensures correct impeller rotation regardless of phase sequence, provides built‑in motor protection (overload, phase loss, over-temperature), anti‑clog functionality, and integrated start mode (direct‑on‑line or soft‑start)
Diagnostics and pump operating history accessible via USB when AquaTronic is installed
Plug‑and‑pump configuration: no external starter panel is required, simplifying setup and operation
Features & Optional Configurations
Available in Medium‑Head (ND), High‑Flow (LD), High‑Head (HD, 60 Hz only), and Super High‑Head (SD) variants
Standard version uses direct‑on‑line starter with built‑in contactor; AquaTronic version includes soft‑start option (230–460 V) via integrated thyristors
Motor Protection: thermal switches in stator winding (~140 °C) connected to the contactor for shutdown and automatic restart
Dual silicon carbide mechanical shaft seals in oil bath ensure high sealing reliability under abrasive conditions
Modular hydraulic design permits easy conversion between ND , LD , HD , and SD configurations for tailored flow/head needs
The Sulzer XJC 80 offers high‑performance dewatering in a compact, center‑line package. With flow rates nearing 37 L/s and lift heights up to 94 m , it delivers capability while remaining portable and service‑friendly. Optional AquaTronic control provides intelligent automation, diagnostics , and motor protection , making it a versatile choice for demanding construction , tunneling , mining , or utility dewatering projects.
