Description

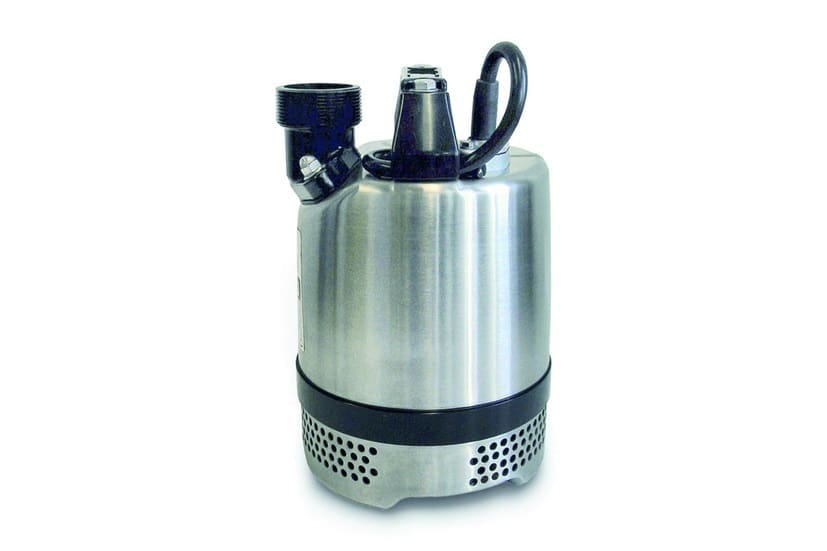

Sulzer Centrifugal Submersible dewatering pumps Submersible drainage center-line pump JC 6 (60Hz US) -Lose the water: plug in and go
Key Technical Specifications:
-
Motor Power: 0.6 hp (~0.45 kW) , single-phase , with built-in capacitor
-
Speed: 3,450 rpm
-
Voltage: 115 V
-
Max Flow: ~63 GPM (~4 L/s)
-
Max Head: ~40 ft (~12 m)
-
Maximum Submergence: ~26 ft (~8 m)
-
Weight: ~30 lb (without cable)
-
Discharge Connection: 2″ NPT threaded
-
Insulation Class: B
-
Seal Type: Dual silicon carbide mechanical seals
-
Bearing: Single-row deep-groove ball bearing
-
Materials: Aluminum casing, stainless‑steel shaft , polyurethane impeller , rubber wear parts
Why Choose the Sulzer JC 6 Submersible Pump
Ideal for pumping water and dirty water with light abrasives in applications where space and portability matter.
Plug‑and‑pump design—simple setup with no need for external starter panels.
Built-in thermal overload protection ensures safe operation ; features a reliable double mechanical shaft seal in an oil bath.
Slim and lightweight (~30 lb / 13.6 kg) for easy transport and placement.Key Features & Design Benefits
Center-line , compact configuration ensures ease of handling in trenches or confined sumps.
Reliable sealing and motor heating protection make it suitable for intermittent operation.
Simplified spare parts and maintenance , with shared components across JC models for easy diagnosis and service.
Efficient hydraulics and motor design support reduced power consumption for economical operation.
