Description

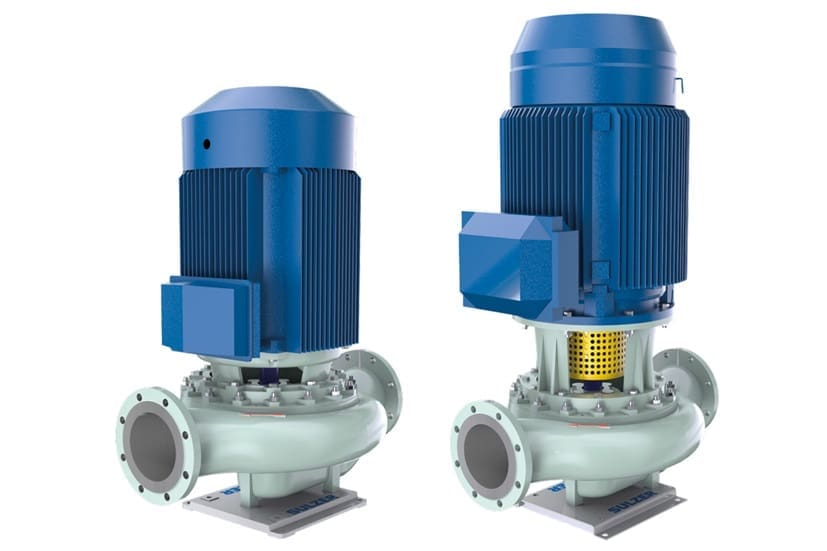

Sulzer Centrifugal Vertical inline pumps SIL inline process pump range – Excellent performance through unique design methods
Key Technical Specifications:
| Capacities | up to 720 m3/h / 3,200 USgpm |
| Heads | up to 100 m / 328 ft. |
| Pressures | up to 16 bar / 230 psi |
| Temperatures | up to 180°C / 356°F |
Why Choose Sulzer SIL Vertical Inline Process Pumps?
The Sulzer SIL pump range offers a compact , highly efficient inline solution for industrial process applications. Its vertical configuration reduces footprint while maintaining full compliance with ISO 5199 standards. Designed for continuous operation with aggressive fluids , the SIL pump ensures robust performance , simplified maintenance , and long service life.
Key Technical Specifications
Pump Type: Vertical single-stage centrifugal inline process pump
Design Standard: ISO 5199 / ISO 2858
Mounting: Close-coupled or long-coupled versions available
Seal Type: Single or double mechanical seals (API , cartridge , or component types)
Bearings: Grease- or oil-lubricated with optimized cooling options
Design & Functionality
True inline design with back-pull-out for easy maintenance
Fully enclosed impeller for improved hydraulic efficiency
Modular bearing units with optional cooling and condition monitoring
Shaft seal chamber designed for full seal flexibility
Mounting adaptability for vertical or horizontal configurations
Typical Applications
Petrochemical and chemical process fluids
Cooling and heating water circulation
Water treatment and filtration systems
Pulp and paper industry
Power plant auxiliary services
Additional Features
ISO-standard design ensures easy interchangeability
Inline configuration simplifies piping and system layout
Wide range of metallurgies including duplex and super duplex
Optimized for both clean and slightly contaminated liquids
Engineered for high reliability in continuous-duty environments
