Description

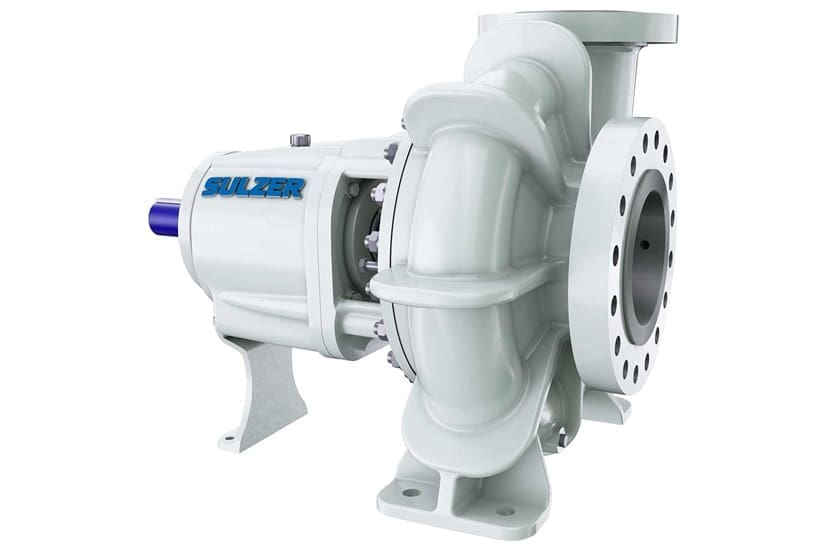

Sulzer Pump Centrifugal PRF high-pressure booster pump-this pump is the smart solution for demanding high-pressure systems—backed by Sulzer’s global expertise and support network.
Key Technical Specifications:
| 50 Hz | 60 Hz | |
|---|---|---|
| Capacities | up to 1’350 m³/h | up to 7’250 US gpm |
| Heads | up to 95 m | up to 445 ft |
| Pressures | up to 75 bar | up to 1’090 psi |
| Temperatures | up to 200 °C | up to 392 °F |
| Maximum Speed of rotation | up to 3’000 rpm | up to 3’550 rpm |
Why Choose Sulzer PRF?
Sulzer PRF booster pump when your operation demands reliable high-pressure performance and efficient energy use. Designed specifically for challenging applications like reverse osmosis, boiler circulation, and demanding process flows, it delivers robust, low-maintenance performance with global support .
Main Features
Back pull-out design allows pump dismantling without moving piping or motor
Foot-mounted or centerline-mounted casing based on size for installation flexibility
ISO PN 100 flanges, with optional ANSI 600# per customer specs
Triple rolling-contact bearings, oil-lubricated, with taper roller bearings for high load capacity
Closed impeller with wear ring for long-term hydraulic efficiency
High pressure mechanical seal ensures leak-free operation
Applications
Ideal for:
Reverse osmosis systems (SWRO booster pumps)
Boiler water circulation
High-pressure process flows in petrochemical, water treatment, and industrial applications
