Description

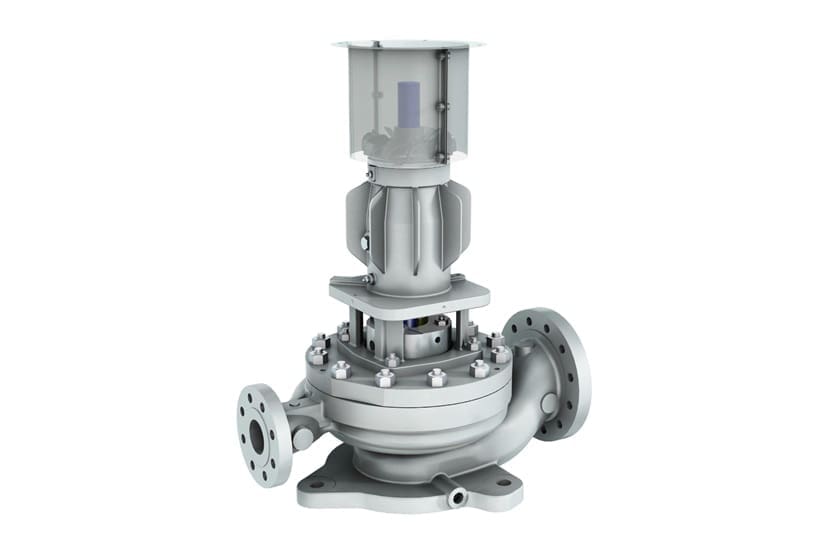

Sulzer Pump Centrifugal OHV overhung vertical inline pump-Built for the toughest industrial environments—from offshore seawater to hydrocarbon boosting
Key Technical Specifications:
50HZ
-
Pump Sizes: 1″–10″ / 25–250 mm
-
Capacities: up to 1,450 m³/h / 6,800 US gpm
-
Heads: up to 350 m / 1,150 ft
-
Pressures: up to 51 bar / 740 psi
-
Temperature range: –160 to +340 °C / –256 to +650 °F
- 60HZ
-
Pump sizes: from 25 to 250 mm
-
Capacities: up to 6,800 US gpm
-
Heads: reaching 1,150 ft
-
Pressures: up to 740 psi
- Temperatures: ranging from –256 °F to +650 °F
Why Choose Sulzer OHV?
Choose the Sulzer OHV for its robust and compact vertical inline design, built to API 610 (ISO 13709) OH3 standards. It features fan-cooled, finned bearing housing, a vibration-resistant motor stand, heavy-duty shaft and bearings, and efficient cartridge seals—all in a convenient back-pull-out assembly for easy servicing. Ideal for seawater boosting, hydrocarbon pumping, and tank-farm services, the OHV delivers reliable performance in demanding environments
Main Features
Finned bearing housing equipped with fan-add cooling ensures longevity
Heavy-duty pump and motor stand dramatically reduces vibration
API 682 cartridge mechanical seals for low emissions and easier seal replacement
Robust OHH shaft and bearings to minimize shaft deflection and extend seal life
Casing engineered for 2× nozzle loads per API 610 for high structural integrity
Standard 300# flanges, with optional suction-enhancement features
Applications
Perfect for heavy-duty duties such as:
Critical seawater booster systems (onshore/offshore)
Light hydrocarbon boosting
Pump-around and circulation systems
Tank-farm booster duties
