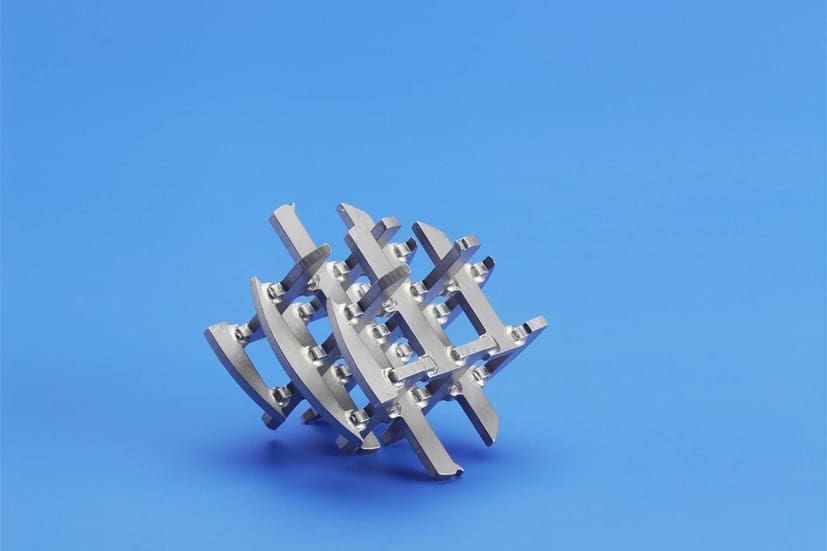

Sulzer Agitators and mixers Static mixers General purpose mixer Static mixer SMX™ plus -A revolution for laminar flow
Key Technical Specifications:
Technical specification SMX plus
| Diameter | from 15 mm – 200 mm |
| Special materials | available upon request |
| Standard material | stainless steel 1.4404 |
| Design | Standard housings for SMX and SMX plus mixers are in accordance with DIN or ANSI code. Design and fabrication to other codes such as ASME or AD2000 are also possible. |
Technical specification SMX
| Diameter | from 3.2 mm – 200 mm |
| Standard material | 316 stainless steel |
| Design | Standard housings for SMX and SMX plus mixers are in accordance with DIN or ANSI code. Design and fabrication to other codes such as ASME or AD2000 are also possible. |
Why Choose Sulzer SMX™ Plus Static Mixer?
The Sulzer SMX™ Plus static mixer is an advanced high-efficiency in-line mixer for demanding mixing , dispersion , and reaction processes. Its unique element geometry delivers (up to 60%)lower pressure drop compared to conventional designs while maintaining exceptional mixing performance.
This makes it ideal for applications requiring reduced energy consumption and improved process control.
Key Technical Specifications
Mixer Type: High-performance in-line static mixer
Design: Optimized element shape for energy-efficient mixing
Materials: Stainless steel , high-grade alloys , or engineered plastics
Connection Types: Flanged , threaded , or sanitary clamp connections
Flow Regime: Effective in laminar , transitional , and turbulent conditions
Pressure Rating: Available in standard and custom options
Typical Applications
Polymer production and blending
Chemical dosing , neutralization , and dispersion
Gas–liquid mass transfer processes
Water treatment and wastewater chemical injection
Oil & gas processing and refining
Food , beverage , and pharmaceutical manufacturing
Additional Features
Lower operating costs due to reduced energy demand
Compact footprint for easy retrofit in existing pipelines
No moving parts , ensuring low maintenance
Fully customizable design for specific process needs
Corrosion-resistant material options for aggressive media
Sulzer’s SMX™ Plus static mixer combines cutting-edge design with outstanding mixing efficiency , helping industries achieve better results at lower energy costs. Engineered for versatility , durability , and performance , it sets a new benchmark in static mixing technology.
