Description

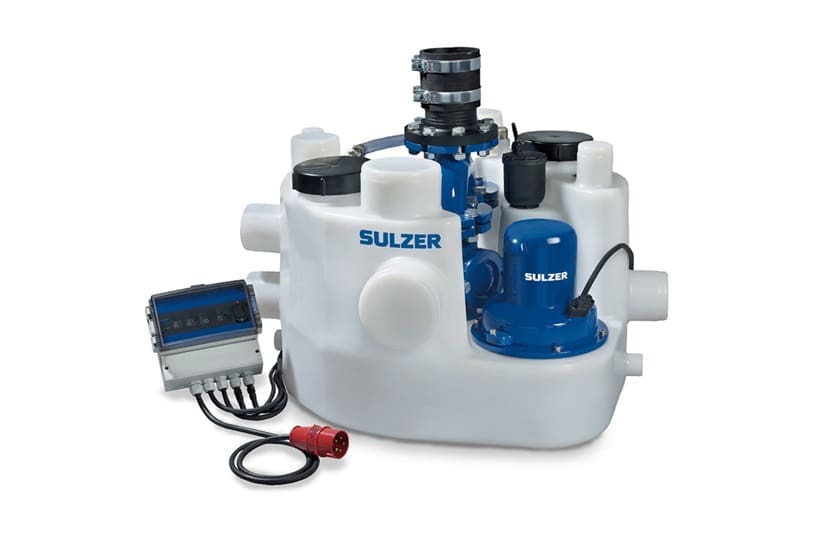

Sulzer Centrifugal Wastewater pumps and lifting stations pumps Lifting station type ABS Sanimat 1002 -Ideal for sewage pumping in residential areas
Key Technical Specifications:
| Capacity | 55 m³/h (242 US gpm) |
| Head | 9.5 m (31 ft) |
| Temperatures | 40° C (maximum 60° C for five minutes) |
| Discharge sizes | Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN80/100). |
| Maximum speed of rotation | 1,450 min-1 |
Why Choose the Sulzer ABS Sanimat 1002?
The Sanimat 1002 is a robust , duplex lifting station designed for automatic wastewater and sewage removal from areas below the sewer level. Engineered with two high-efficiency submersible pumps , it ensures uninterrupted operation even under high load conditions.
Key Technical Specs
Configuration: Twin-pump system for duty/standby or duty/assist operation
Tank Volume: Approx. 100 liters , made from durable corrosion-resistant polyethylene
Discharge Connection: DN50 or DN80 options
Inlets: Multiple DN100 connections for flexible piping
Control Unit: Advanced control panel with level sensors and alarm
Power Options: Available in both single-phase and three-phase versions
What Makes It Stand Out
Dual-pump reliability for continuous operation
Compact, enclosed tank – odor-free and hygienic
Plug-and-play installation with pre-assembled components
Compliance with EN 12050 standards
Quiet , low-maintenance performance
Common Applications
Commercial buildings, hotels, and restaurants
Multi-family residences and apartment blocks
Public buildings with basement sanitation needs
Any facility needing a backup lifting system
Additional Features
Audible and visual alarms for pump failure or high water
Float or pressure level controls
Quick-access lid for easy service
Customizable pump configurations based on inflow rate and head
Sulzer ABS Sanimat 1002 – The ideal duplex lifting station for demanding wastewater handling. Built to last. Ready to perform.
