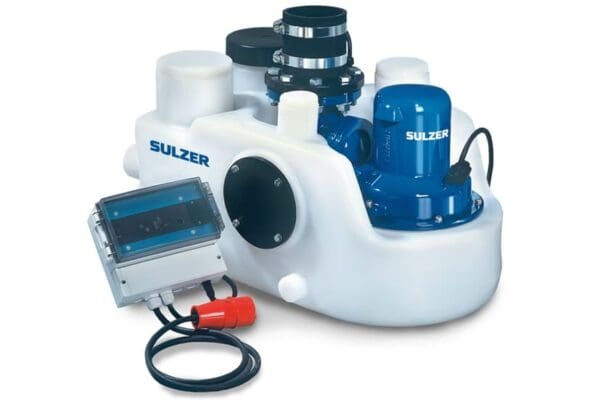

Sulzer Centrifugal Wastewater pumps and lifting stations pumps Lifting station type ABS Sanimat 1000 – Dynamic solutions for domestic environments
Key Technical Specifications:
| Capacity | 55 m³/h (242 US gpm) |
| Head | 9.5 m (31 ft) |
| Temperatures | 40° C (maximum 60° C for five minutes) |
| Discharge sizes | Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100) |
| Maximum speed of rotation | 1,450 min-1 |
Why Choose the Sulzer ABS Sanimat 1000?
The Sanimat 1000 is a ready-to-install , high-performance duplex lifting station designed for the automatic removal of wastewater and sewage from buildings below the sewer level. With two powerful sewage pumps , it provides maximum reliability , especially where continuous operation or high inflow is expected.
Key Technical Specs
Pump Configuration: Duplex system with two submersible wastewater pumps
Tank Volume: Approx. 100 liters , made of corrosion-resistant PE
Discharge Size: DN50 or DN80 depending on configuration
Control Panel: Integrated with automatic level control and alarm
Inlet Connections: Multiple DN100 , flexible layout
Power Supply: Single-phase or three-phase depending on pump type
Why It Stands Out
Two pumps provide redundancy (duty/standby or duty/assist mode)
Compact design fits in confined installation spaces
Gas- and odor-tight tank for hygienic operation
Pre-assembled for plug-and-play installation
Compliant with EN 12050-1 and 12050-4
Typical Applications
Commercial buildings (restaurants , schools , hotels)
Apartment complexes
Basements and underground facilities
Remote toilet blocks or high-flow systems
Additional Features
Alarm system with visual and audible signals
Easy-access cover for maintenance
Float switches or sensor control options available
Flexible pump types (with vortex or impeller designs)
