Description

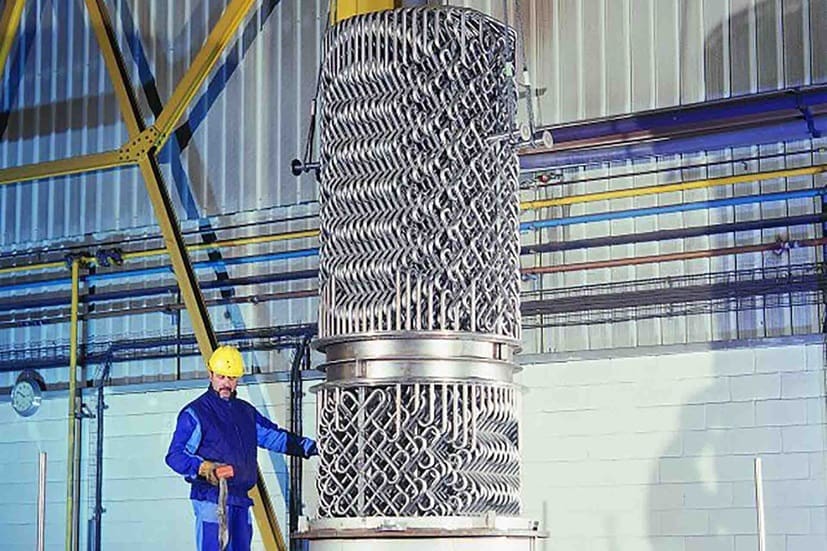

Sulzer Agitators and mixers Static mixers Heat exchangers and reactors Heat exchanger SMR -Be in control where mixing meets heat transfer
Key Technical Specifications:
| Diameter | from 80 – 1600 mm, larger units upon request |
| Length | determined by process requirements and requested performance, ranges from 1 m for a compact heat exchanger up to 20 m for a full reactor tower |
| Standard material | Stainless steel / carbon steel |
| Special surface coatings | on request (i.e. for food applications) |
| Design | Welded mono-block is common. Flanged design is recommended if process routine requests periodic removal and disposition of bundles |
Why Choose Sulzer SMR Heat Exchanger?
The Sulzer SMR heat exchanger is a high-efficiency , compact device that integrates heat transfer with mixing for optimal process performance. Its static mixer elements enhance thermal exchange rates , reduce fouling , and ensure uniform temperature distribution across the media. Sulzer’s design is ideal for applications where precise temperature control and energy efficiency are critical.
Key Technical Specifications:
Type: Static mixer heat exchanger
Design: Incorporates SMR mixing elements for improved heat transfer
Materials: Stainless steel , high-alloy metals , or corrosion-resistant materials
Configuration: Shell-and-tube or pipe-in-pipe design options
Connection Types: Flanged , welded , or sanitary connections
Flow Regime: Suitable for laminar , transitional , and turbulent flows
Typical Applications
Heating and cooling of process liquids
Viscous fluid temperature control in polymer and food production
Energy recovery in chemical processes
Crystallization and reaction temperature management
Water and wastewater treatment thermal processes
Additional Features
Enhanced heat transfer with reduced footprint
Mixing elements minimize fouling and scaling
Low maintenance due to absence of moving parts
Customizable for specific process requirements
Energy – efficient design for reduced operational costs
