Description

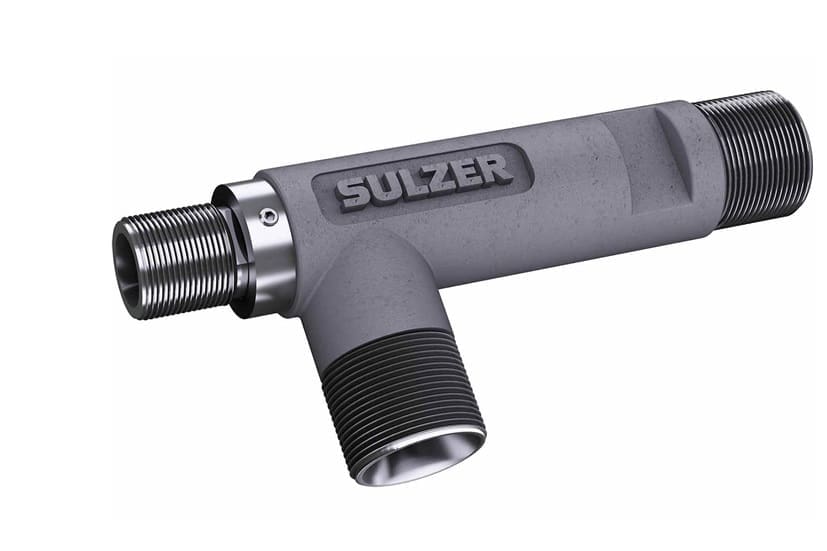

Sulzer Control and Monitoring equipment Pump accessories Ejector for pump -Reliable solution for fully automated priming
Key Technical Specifications:
S size
| SI units | US units | |
| Priming capacity | up to 4.4 l/s | up to 70 USgpm |
| Maximum priming height | up to 8 m | up to 26.5 ft. |
| Air inlet feed pressure | 4 to 6 bar | 58 to 87 psi |
| Air consumption | 330 Nl/min (6 bar) | 12.4 SCFM (87 psi) |
| Temperature of pumped liquid | up to 90°C | up to 194°F |
L size
| SI units | US units | |
| Priming capacity | up to 8 l/s | up to 127 USgpm |
| Maximum priming height | up to 7 m | up to 23 ft. |
| Air inlet feed pressure | 4 to 6 bar | 58 to 87 psi |
| Air consumption | 860 Nl/min (6 bar) | 32.3 SCFM (87 psi) |
| Temperature of pumped liquid | up to 90°C | up to 194°F |
Why choose ejector for pump?
It enhances pump performance by using a venturi effect to increase suction lift and improve pumping efficiency in applications where the water source is located at a greater depth.Ejector for pump makes it ideal for situations where standard pumps cannot achieve the required suction.
Typical applications
Deep well water supply systems
Groundwater pumping
Irrigation and agricultural water systems
Industrial water transfer from deep sources
Remote or rural water supply installations
Additional features
Increases suction lift beyond normal pump limits
Simple and robust construction for long service life
Compatible with various Sulzer pump models
Easy installation and minimal maintenance requirements
Operates efficiently with low energy consumption
Suitable for continuous or intermittent operation
