Description

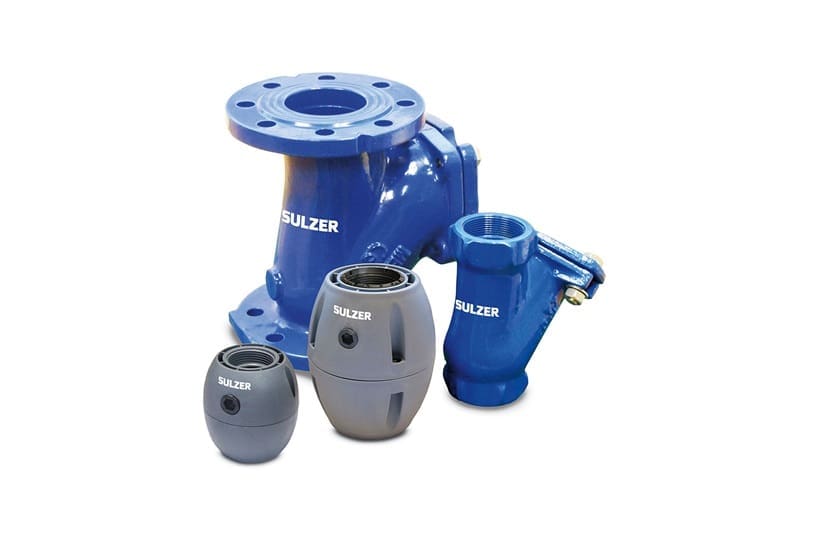

Sulzer Control and Monitoring equipment Pump accessories Check valves type ABS -Ensuring one way drainage systems
Key Technical Specifications:
| Ball valve | G 1 ¼” – G 2 ½” DN 80 – DN 150 |
| Rated pressure | 10 bar |
| Medium temperature Continuous operation |
60 °C |
| Flap check valves | G 1 1/4” – G 2” |
| Rated pressure | 4 bar |
| Water test pressure | 6 bar |
Why choose check valves type ABS?
They prevent backflow in pumping systems , ensuring water or wastewater flows in the correct direction and protecting pumps from damage caused by reverse flow. This improves system efficiency , reduces maintenance costs , and extends equipment life.
Typical applications
Wastewater pumping stations
Stormwater and drainage systems
Clean water supply systems
Irrigation networks
Industrial fluid handling systems
Additional features
Robust design for long-lasting performance
Low opening pressure for efficient operation
Available in various sizes and materials to suit different fluids
Minimal maintenance requirements
Reduces risk of water hammer and reverse flow damage
Easy installation in horizontal or vertical pipelines
