Description
Sulzer Blowers and aerators Aeration equipment Self-aspirating mechanical aerators Aerator type ABS Venturi jet-Small size mixing and aeration
Key Technical Specifications:
| Maximum water circulation | 500 m3/h (2,500 US gpm) |
| Maximum air throughput | 550 m3/h (330 SCFM) |
Why Choose Sulzer ABS Venturi Jet Aerators?

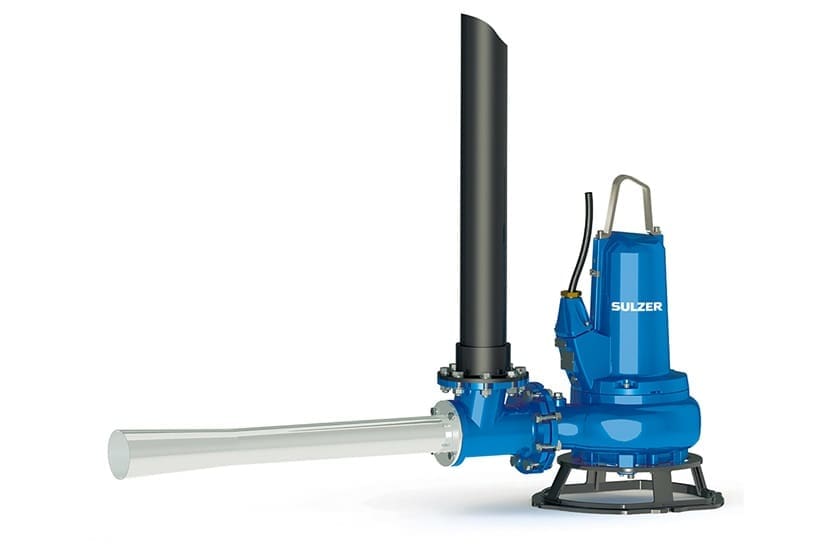

The Sulzer ABS Venturi Jet is a self-aspirating mechanical aerator designed for efficient oxygen transfer and effective mixing in municipal and industrial wastewater treatment. Using the Venturi principle , it draws air directly from the atmosphere and disperses it into fine bubbles , achieving excellent aeration without the need for external blowers or compressors. Its compact and robust design ensures easy installation , low energy consumption , and long-term reliability.
Key Technical Specifications
Type: Self-aspirating Venturi jet aerator
Power Range: 1.5–22 kW (depending on model)
Oxygen Transfer Capacity: High efficiency with fine bubble dispersion
Installation: Fixed or floating configuration
Material Options: Corrosion- and wear-resistant materials for harsh conditions
Operating Limits
Medium Temperature: 0 °C to +40 °C
Water Depth: Flexible based on application requirements
Continuous Duty: Designed for 24/7 operation
Suitable Media: Municipal wastewater , industrial effluents , and sludge liquor
Typical Applications
Aeration and mixing in oxidation ditches
Equalization and sludge holding tanks
Pre-aeration before biological treatment
Seasonal or supplementary aeration
Additional Features
Combines mixing and aeration in one unit
No external air supply required
Easy installation without draining tanks
Low noise and vibration levels
Minimal maintenance requirements
