Description

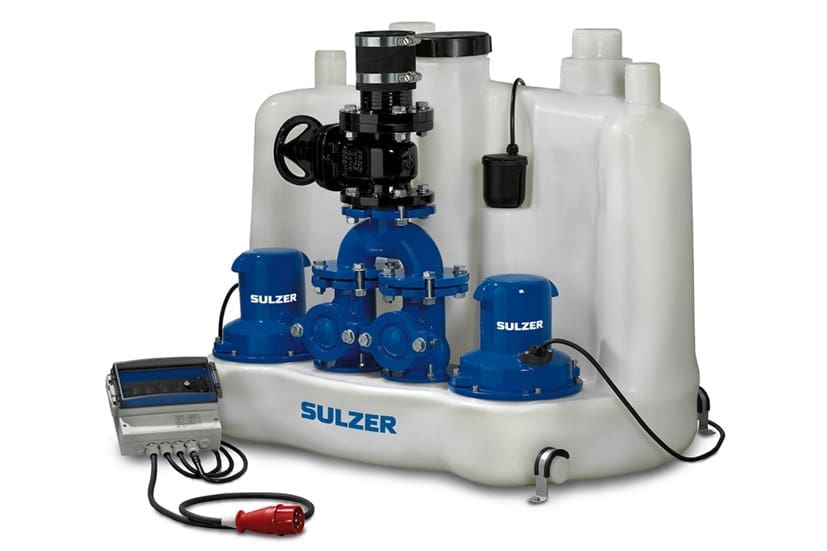

Sulzer Centrifugal Wastewater pumps and lifting stations pumps Lifting station type ABS Sanimat 2002 -Need to scale up: Lifting stations for new builds
Key Technical Specifications:
| Capacity | 55 m³/h (242 US gpm) |
| Head | 18 m (59 ft) |
| Temperatures | 40° C (maximum 60° C for five minutes) |
| Discharge sizes | Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100). |
| Maximum speed of rotation | 1,450 min-1 (Sanimat 2002 D/HD)2,900 min-1 (Sanimat 2002 D/XD) |
Why Choose the Sulzer ABS Sanimat 2002?
The Sanimat 2002 is a heavy-duty duplex lifting station built for handling large volumes of wastewater and sewage in commercial and municipal applications. Designed with two powerful submersible pumps , it ensures maximum operational reliability and redundancy.
Key Technical Specs
Tank Capacity: Approx. 200 liters , high-density polyethylene or polyethylene-lined steel
Pump Configuration: Duplex (duty/standby or duty/assist)
Discharge Connection: DN80 or DN100
Inlets: Multiple DN100/DN150 options
Control Unit: Advanced panel with integrated level sensors , alarms , and optional remote monitoring
Power Supply: Single-phase or three-phase options , depending on pump type
What Makes It Stand Out
Larger tank and pump capacity for higher flow rates
Reliable duplex operation for continuous performance
Hygienic , sealed design to prevent odor or leakage
Pre-configured and easy to install
Fully compliant with EN 12050-1 standards
Typical Applications
Hospitals , hotels , and industrial facilities
Commercial buildings with basement plumbing
Public and municipal wastewater systems
Areas requiring robust and scalable sewage solutions
Additional Features
Float or pressure-based control system
Visual and audible alarms for faults
Service-friendly design with quick access points
Optional BMS integration for smart building systems
