Description

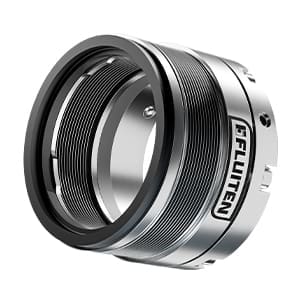

FLUITEN Standard Mechanical Single Seals Component Seals , TSMA – combines a welded metal-bellows structure , balanced , bidirectional design , and high-temperature static sealing to deliver a reliable , long-lasting solution in chemical and heat-service pump applications.
Key Technical Specifications:
| DIAMETER | SPEED | PRESSURE | TEMPERATURE |
|---|---|---|---|
| 20-100 (mm)* | 0-20 (m/sec) | 0-22 (bar) | -70 – 300 (°C) |
Why Choose FLUITEN Standard Mechanical Single Seal TSMA?
The TSMA is a single metal-bellows, balanced, bidirectional component seal with a Type A stationary seat, specifically designed for demanding chemical and petrochemical applications. Its welded bellows and static secondary sealing provide excellent performance in high-temperature and mildly corrosive environments, with flexibility to tolerate shaft misalignment and vibration.
Typical Applications
Chemical and petrochemical pump sealing
High-temperature fluids like diathermic oils or hot hydrocarbons
Systems with potential shaft misalignment or vibration issues
Pumps handling slightly corrosive or crystallizing fluids
Retrofit installations requiring metal-bellows reliability
Additional Features
Metal bellows provide both spring force and dynamic seal in one component
Static secondary seals resistant to high temperatures and chemical attack
Flexible tolerance to axial and radial shaft movement and thermal cycling
Compact component format ideal for standard gland plates and cartridge upgrades
Material selection flexibility: face materials, elastomers, bellows alloys tailored to service needs
The FLUITEN TSMA combines a welded metal-bellows structure , balanced , bidirectional design , and high-temperature static sealing to deliver a reliable , long-lasting solution in chemical and heat-service pump applications. It offers flexibility , performance , and compact simplicity-making it the trusted choice for engineers and maintenance teams.
