Description

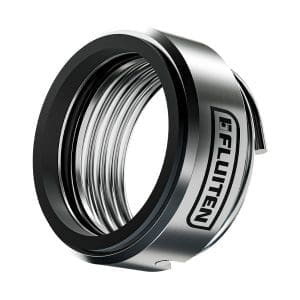

FLUITEN Standard Mechanical Single Seals Component Seals , S SA – delivers dependable , bidirectional sealing in a compact , single-spring format , making it perfect for pumps in standard industrial applications.
Key Technical Specifications:
| DIAMETER | SPEED | PRESSURE | TEMPERATURE |
|---|---|---|---|
| 20-80 (mm)* | 0-10 (m/sec) | 0-10 (bar) | -50 – 220 (°C) |
Why Choose FLUITEN Standard Mechanical Single Seal SA?
The SA is a compact, single-spring component seal with a Type A pinned stationary seat, designed for both clockwise and anticlockwise rotation. It’s ideal for standard pump applications requiring a simple, robust, and reliable sealing solution in clean-to-moderately-clean liquid services.
Typical Applications
Pumps handling clean to slightly contaminated fluids
Standard chemical and water treatment services
Systems requiring straightforward, reliable sealing in both shaft directions
Applications needing a compact, low-cost seal without sacrificing ISO compliance
Additional Features
Simple single-spring design ensures compactness and ease of installation
Spring immersed in fluid offers natural lubrication and ensures steady spring load
Robust pinned seat prevents rotation and ensures longevity
Versatile elastomer options (e.g. , FKM , EPDM , Aflas , PTFE) for different chemical compatibilities
Easy assembly and removal thanks to compact design and pin-seat orientation
FLUITEN’s SA seal With its pinned-seat security, ISO-compliant design, and wide operating range, the SA offers dependable performance with minimal maintenance requirements.
