Description

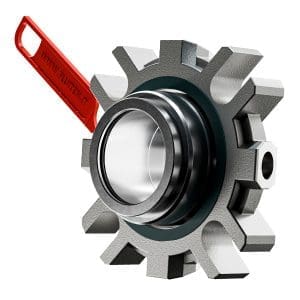

FLUITEN Standard Mechanical Single Cartridge Seals CB2T – Seal with flange with specifications suitable for ISO pumps with auxiliary fixed bush , leakage control for plan 11-61. With flushing connection.
Key Technical Specifications:
| DIAMETER | SPEED | PRESSURE | TEMPERATURE |
|---|---|---|---|
| 25-100 (mm)* | 0-12 (m/sec) | 0-25 (bar) | -50 ÷ 250 (°C) |
Why Choose FLUITEN CB2T?
The CB2T is a single-cartridge, double-balanced hydraulic seal designed for ISO centrifugal pumps that handle crystallizing or challenging fluids. It features external multi-springs, a fixed containment bushing, and uses the Fluistrip tool for fast, accurate installation. This design supports steam quench, pressure-reversal resilience, and simplifies maintenance with easy flange compatibility.
Flushing Options:
Pump discharge flush (Plan 11/61 or Plan 11/62)
External source flush (Plan 32/61 or Plan 32/62)
Installation Features:
Slotted flange for flexible stuffing-box fitment
Fluistrip self-centering tool, removed before machine startup
Typical Applications
Pumps requiring steam quench for crystallizing fluids
Installations needing double-balanced hydraulic sealing and low-maintenance cartridge assembly
Chemical, petrochemical, and industrial services with medium pressure and temperature operations
Additional Features
Balanced design prevents seal opening during pressure reversals
External springs and sliding drive system enhance reliability under vibration or run-out
Self-centering Fluistrip tool ensures quick, accurate setup
Slotted flange adapts to varied stuffing-box geometries
Modular ring and gasket options support diverse chemical compatibilities
