Description

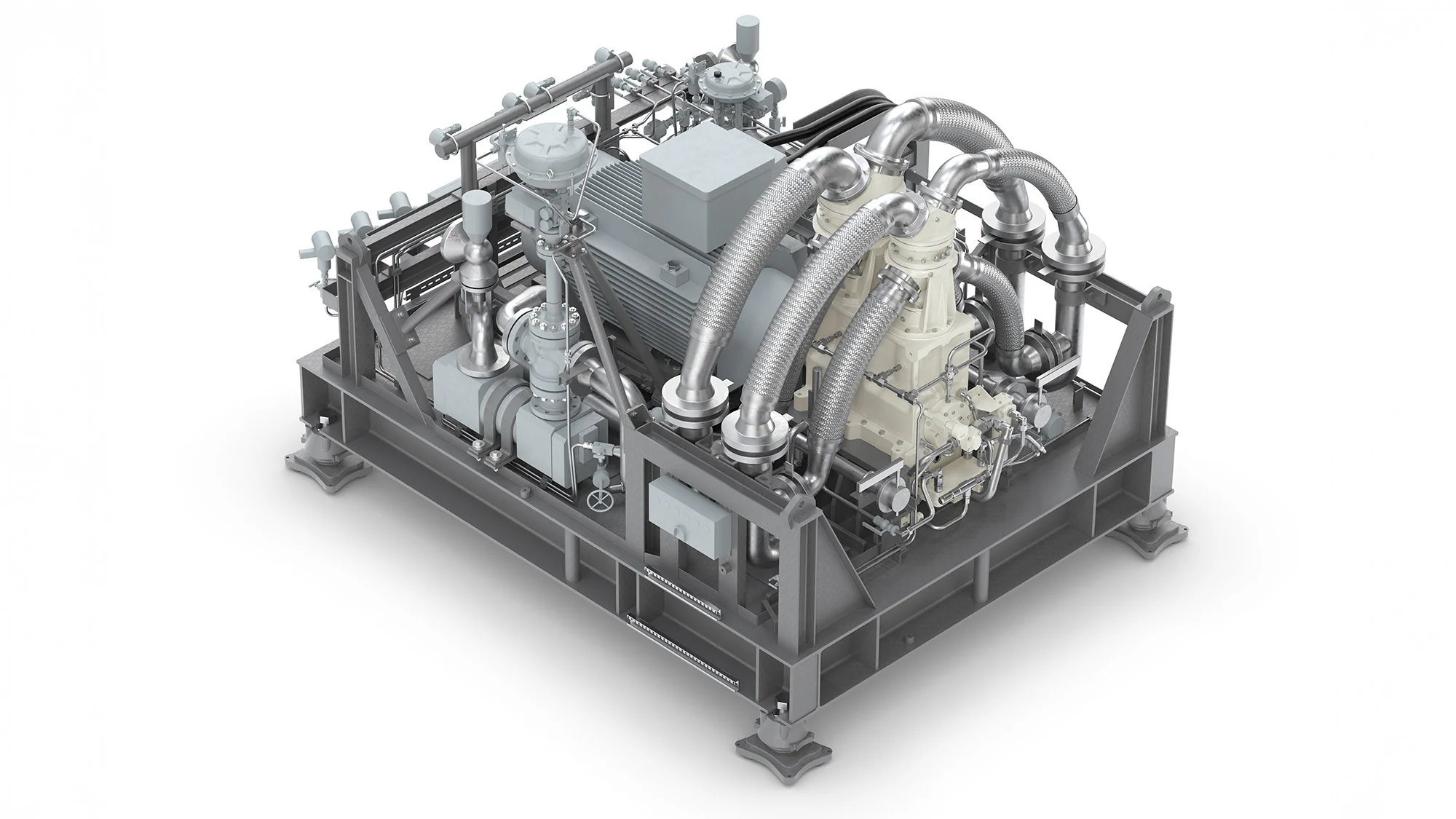

Burckhardt Compression Laby® 2K70 – 2A – Compact , Gas -Tight Compressor for Low-Pressure Methane Applications

Key Technical Specifications

Compressor Type: Laby® 2K70-2A
Gas Compatibility: CH₄ (max. 10% N₂)
Capacity: up to 1,000 kg/h*
Speed Range: 1,200–1,800 rpm
Stroke: 70 mm
Shaft Power: max. 135 kW (rated: 90 / 135 kW)
Crankcase Type: Gas-tight up to 15 barg
Suction Pressure: 0.0 – 0.6 barg
Discharge Pressure: 8.0 – 18.0 barg
Compression Technology: Labyrinth – sealed ,  oil – free , single – acting piston compressor
Design Standards: API 618 , ISO 13707 , ATEX Certified

Why Burckhardt Laby® 2K70-2A?

Clean. Safe. Compact.
The 2K70-2A is built for low – pressure methane and biogas. It runs oil – free and gas – tight – ideal where purity and safety matter most.

Used In:

Biogas & RNG

Clean energy systems

Specialty gas & labs

Pilot – scale setups

Key Specs:

Oil – free , dry – running

0 barg suction , up to 1,800 rpm

Compact & low vibration

API 618 + ATEX certified
