Description

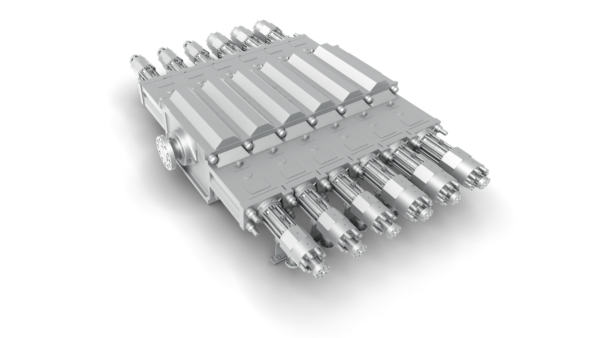

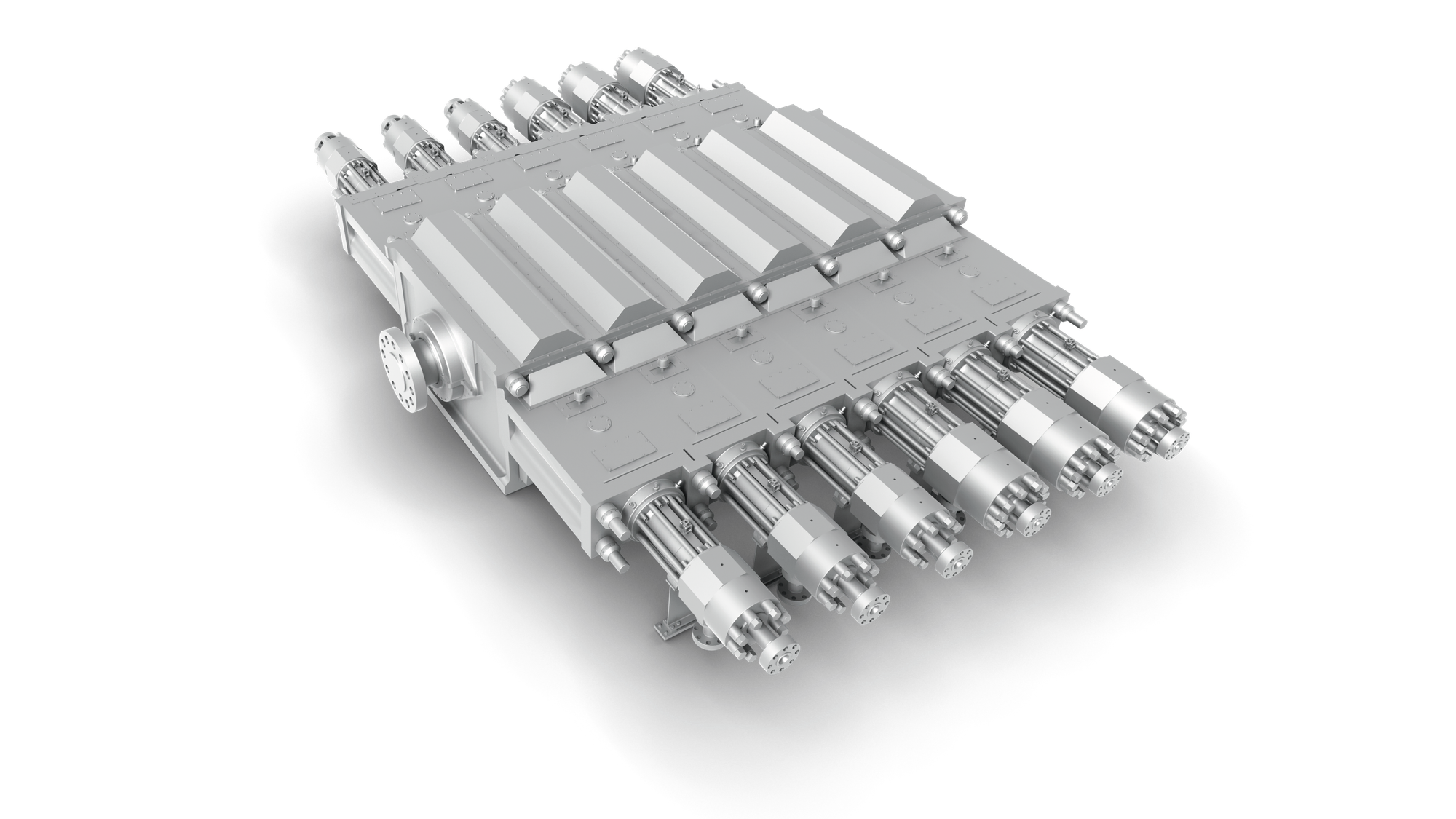

Burckhardt Compression HS-F Fully Balanced Process Gas Compressor
Key Technical Specifications:
Crank Configuration: 2, 4, or 6 cranks
Stroke Options: 105, 130, 150 mm (4.1, 5.1, 5.9 inches)
Speed Range: 300 to 1,200 rpm
Rated Speed: 1,000 rpm
Max. Combined Rod Load: 450 kN / 101,250 lbs
Max. Power per Throw: 1,250 kW / 1,676 hp
Why Choose the HS-F Compressor?
Stable , Low – Vibration Performance
A fully balanced design cuts down on vibration , reducing wear and increasing reliability over time.
Flexible Setup Options
Multiple crank and stroke choices make the HS-F adaptable to a wide range of gas compression needs.
Built for Heavy Loads
Handles up to 450 kN rod load and delivers 1,250 kW per throw , perfect for high – demand applications.
Energy – Efficient Design
Optimized to lower energy use while maintaining strong, consistent output under pressure.
Applications
Gas processing plants
Petrochemical operations
High – pressure gas transport
Power & energy facilities
Key Features
Low vibration = less mechanical stress
Modular design for easy maintenance
Rugged build for extreme environments
