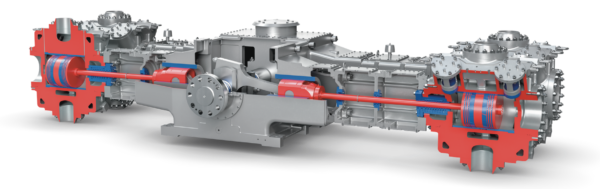

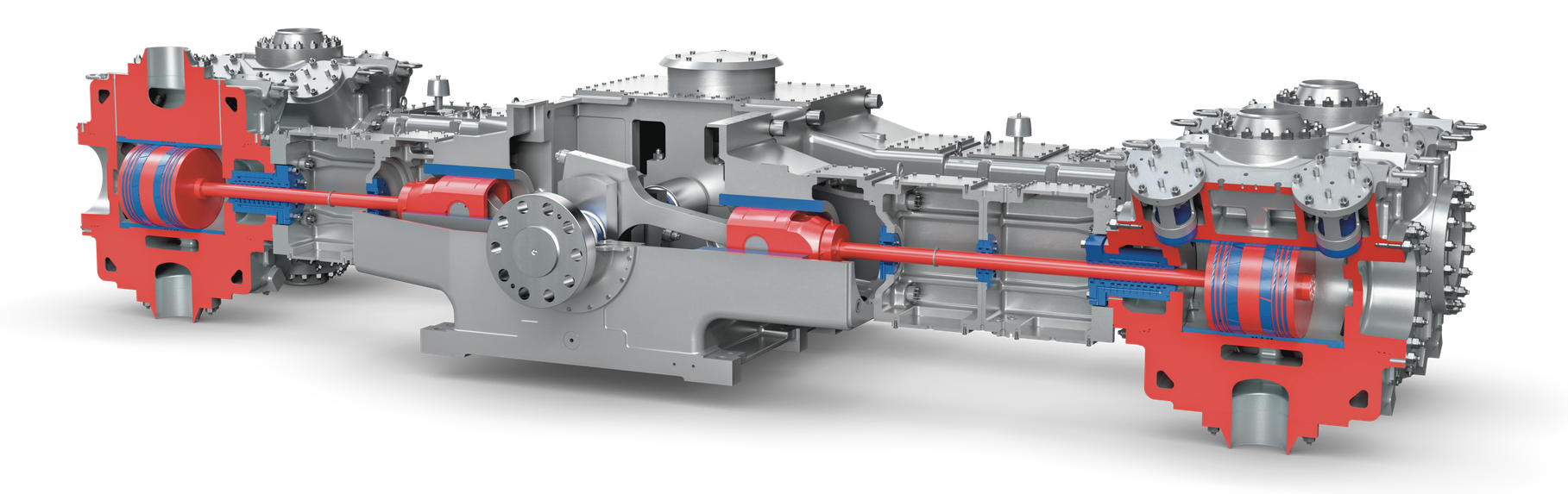

Burckhardt Compression D/M 16 Horizontal Process Gas Compressor – High -Power , Heavy Rod Load Design for Demanding Industrial Gases

Key Technical Specifications:

Compressor Type: D/M 16

Maximum Speed: 450 rpm

Rated Power: 1,800 kW / 2,414 hp

Maximum Rod Load: 176 kN / 39’567 lbs

Design Standards: API 618 , ISO 13707

Configuration: Horizontal , reciprocating

Cooling System: Advanced water – cooled design

Crankcase Type: Gas – tight for hazardous gas containment

Why Choose the Burckhardt D/M 16 Compressor?

Built for Big Compression Jobs
With a rod load of 176 kN and 1,800 kW power , the D/M 16 is designed for continuous operation in high -pressure , high – density gas environments.

Safe for Critical Gases
A gas – tight design ensures safe handling of toxic , flammable , or corrosive gases , with proven reliability in demanding industrial use.

Standards You Can Trust
Fully API 618 compliant – trusted globally for performance , durability , and safety.

Service – Friendly Design
Horizontal layout offers easy access for inspection and maintenance , reducing downtime.

Ideal Applications

Petrochemical & refinery gas processing

CO₂ compression & carbon capture (CCU/CCS)

Hydrogen , helium , and rare gas systems

Syngas & ammonia production

Key Features

Heavy – duty , low – speed crank for long service life

Built – in vibration & pressure control

Optional condition monitoring

Skid or baseplate mounting options for easy integration
